Thin-Film Platinum Temperature Sensor P10K.520.6W.B.010.D
Thin-Film Platinum Temperature Sensor P10K.520.6W.B.010.D
SKU:TEM-339de0
Precision thin-film platinum temperature sensor for accurate readings in extreme conditions. TCR of 3850 ppm/K. IEC 60751 F0.3 Class B.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Thin-Film Platinum Temperature Sensor P10K.520.6W.B.010.D
$39.99
Quantity: 1
Claim Your Seller Account
Thin-Film Platinum Temperature Sensor P10K.520.6W.B.010.D
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

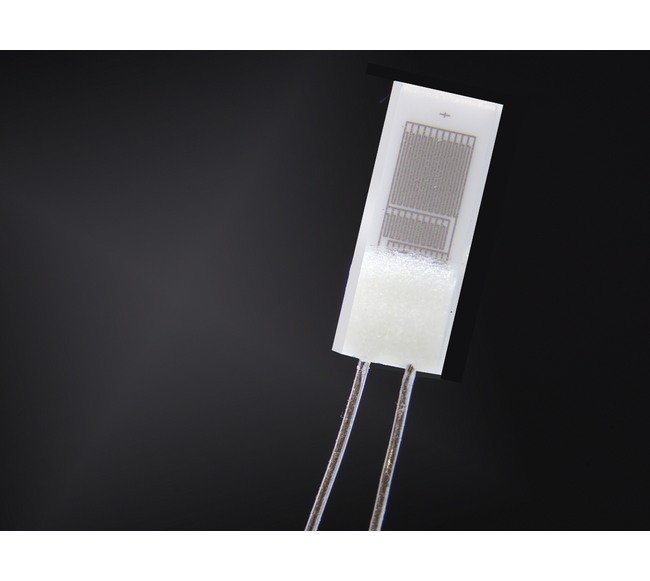

The Thin-Film Platinum Temperature Sensor P10K.520.6W.B.010.D is a precision component designed for accurate temperature measurement in a wide range of applications. This sensor features a 10,000 Ohm RTD on a thin substrate, ensuring reliability and stability in extreme temperature conditions from -200 to +600 ºC. With a Temperature Coefficient of Resistance (TCR) of 3850 ppm/K and a Tolerance meeting International Electrotechnical Commission (IEC) 60751 F0.3 (Class B) standards, this sensor guarantees precise and consistent readings. The platinum/nickel wire construction and compact dimensions make it versatile for various industrial and research settings.
Product Specifications
Dimensions Height
1.05 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P10K.520.6W.B.010.D
Specifications Resistivity At 0 Degree Celsius C Temperature
10,000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Special
On Thin Substrate (0.4 mm)
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
International Electrotechnical Commission (IEC) 60751 F0.3 (Class B)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
