Thin Metal Sales 0.0120in 17-7PH Alloy Annealed Stainless Steel
Thin Metal Sales 0.0120in 17-7PH Alloy Annealed Stainless Steel
SKU:177-b571ec
Discover Thin Metal Sales 0.0120in 17-7PH Alloy Annealed Stainless Steel for high strength and corrosion resistance.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Thin Metal Sales 0.0120in 17-7PH Alloy Annealed Stainless Steel
$35.99
Quantity: 1
Claim Your Seller Account
Thin Metal Sales 0.0120in 17-7PH Alloy Annealed Stainless Steel
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Thin Metal Sales 0.0120in 17-7PH Alloy Annealed Stainless Steel offers exceptional durability and corrosion resistance in a customized size range. With a minimum yield strength of 55 ksi, maximum hardness of 92 Rockwell B, and meeting ASTM-A-693 and AMS-5528 standards, this stainless steel alloy is perfect for demanding applications requiring high tensile strength and elongation. Its composition, including max 18% Chromium and max 7.75% Nickel, ensures superior performance in various environments.

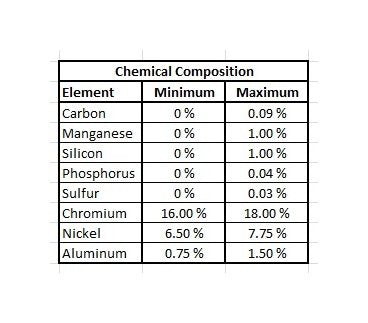

Product Specifications
Composition Maximum Aluminum Composition
1.50 %
Composition Maximum Carbon Composition
0.09 %
Composition Maximum Chromium Composition
18 %
Composition Maximum Manganese Composition
1.00 %
Composition Maximum Nickel Composition
7.75 %
Composition Maximum Phosphorus Composition
0.04 %
Composition Maximum Silicon Composition
1.00 %
Composition Maximum Sulfur Composition
0.03 %
Physical Properties Maximum Hardness
92 Rockwell B
Physical Properties Minimum Elongation In 2 Inch In
20 %
Physical Properties Minimum Tensile Strength
150 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset 000
65 ksi
Physical Properties Minimum Yield Strength 02 Percent Offset Ove
55 ksi
Specifications Alloy
17-7PH Stainless Steel Alloy
Specifications Alloy Steel Type
17-7PH Stainless Steel
Specifications Ams Standard
AMS-5528
Specifications Astm Steel Standard
ASTM-A-693
Specifications Length
Custom
Specifications Temper
Annealed Temper
Specifications Thickness
0.0120 in
Specifications Thickness Tolerance
5 %
Specifications Width
Custom
