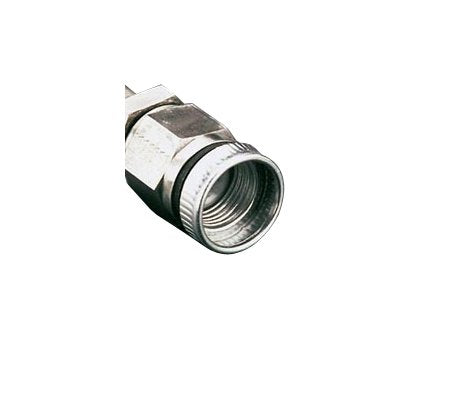

The ASP Series Threaded Aluminum Plugs are expertly designed for safeguarding 37° flared fittings and straight-threaded ports, featuring a nose section that ensures a secure seal without the need for gaskets. Constructed from high-quality 3003-0 Aluminum Alloy, these plugs come in a natural silver color and are compliant with MIL-C-5501/1, NAS-818, and NAS-836 specifications. With precise dimensions (B: 0.61 in, C: 0.940 in, D: 0.9 in) and compatible with 3/4"-16 thread size, these plugs offer exceptional protection. The optional ASP-GN series includes a neoprene shoulder gasket for enhanced low-pressure sealing, while additional gasket options like Butyl or Buna N rubber are available for customized solutions.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/1 | NAS-818 | NAS-836
Specifications Color
Silver (Natural)

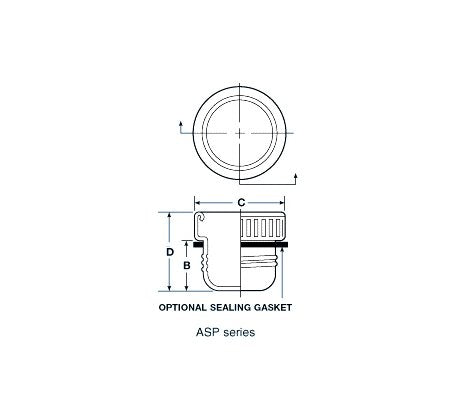

Specifications Dimension B
0.61 in
Specifications Dimension C
0.940 in
Specifications Dimension D
0.9 in
Specifications Material
3003-0 Aluminum Alloy
Specifications Note
Standard ASP Plugs listed below do not include gasket.
Specifications To Fit Thread Size
3/4"-16
