Threaded Aluminum Plugs for 37 Degree Flared Fittings - ASP Series
Threaded Aluminum Plugs for 37 Degree Flared Fittings - ASP Series
SKU:PLU-b78b73
Protective Aluminum Plugs for 37° Flared Fittings & Straight-Threaded Ports, Seal Without Gasket. Additional Gasket Options Available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Aluminum Plugs for 37 Degree Flared Fittings - ASP Series
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Aluminum Plugs for 37 Degree Flared Fittings - ASP Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

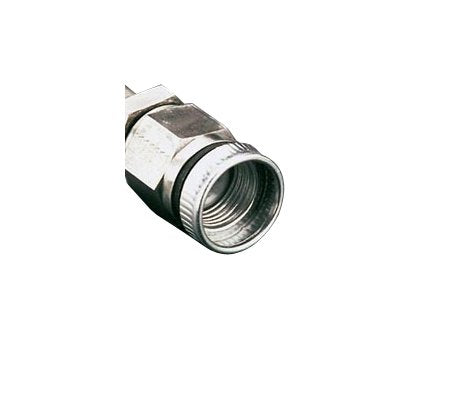

The Threaded Aluminum Plugs in the ASP Series are specially designed to offer superior protection for 37-degree flared fittings and straight-threaded ports. Crafted from durable 3003-0 Aluminum Alloy, these plugs feature a nose section that ensures a secure seal on flared fittings without the need for a gasket. For low-pressure sealing of threaded ports, the optional ASP-GN series includes a neoprene shoulder gasket. With applicable specifications including MIL-C-5501/1, NAS-818, and NAS-836, these plugs come in a natural silver color and are precision-engineered to fit thread size 3/8"-24. Get in touch with our Caplugs Customer Service Representative to explore additional gasket options in Butyl or Buna N rubber for your specific requirements.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/1 | NAS-818 | NAS-836
Specifications Color
Silver (Natural)

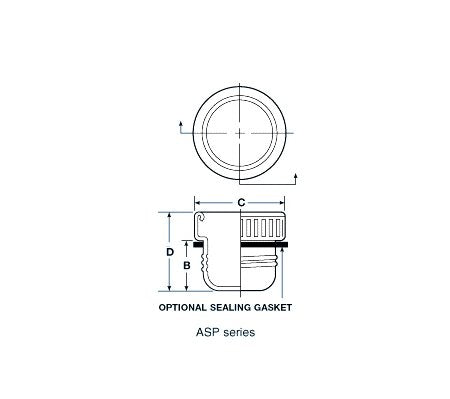

Specifications Dimension B
0.370 in
Specifications Dimension C
0.570 in
Specifications Dimension D
0.610 in
Specifications Material
3003-0 Aluminum Alloy
Specifications Note
Standard ASP Plugs listed below do not include gasket.
Specifications To Fit Thread Size
3/8"-24
