Threaded Aluminum Plugs for Flareless Tube and Hose Assemblies

Name: Threaded Aluminum Plugs for Flareless Tube and Hose Assemblies
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-ed11b6
Price: 15.99 USD
Availability: OutOfStock

SKU:PLU-ed11b6

Secure low-pressure sealing with our Threaded Aluminum Plugs designed for flareless tube and hose assemblies. Compliant with MIL-C-5501/2 and NAS-842.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

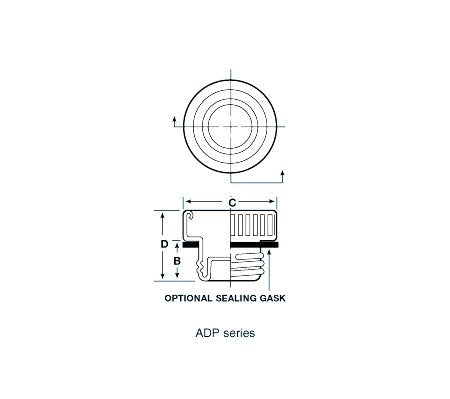

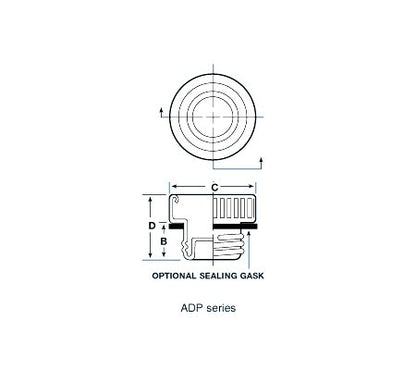

The ADP Series Threaded Aluminum Plugs are expertly designed with a dimpled nose section for a secure low-pressure seal on flareless tube ends. Featuring a neoprene shoulder gasket, the ADP-GN variant ensures a positive seal on the O-ring port's spot face. Options for Butyl or Buna N rubber gaskets are available. Crafted from 3003-0 Aluminum Alloy, these plugs are compliant with MIL-C-5501/2 and NAS-842 specifications. With dimensions B, C, and D designed specifically for 1/2 inch tubes with a 3/4"-16 thread size, these plugs guarantee a reliable and durable fit.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/2 | NAS-842

Specifications Color

Natural (silver)

Specifications Dimension B

0.430 in

Specifications Dimension C

0.940 in

Specifications Dimension D

0.72 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

3/4"-16

Specifications To Fit Tube Size

1/2 in

Threaded Aluminum Plugs for Flareless Tube and Hose Assemblies
