Threaded Aluminum Plugs for Flareless Tube and Hose Assemblies - ADP Series

Name: Threaded Aluminum Plugs for Flareless Tube and Hose Assemblies - ADP Series
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-8f210f
Price: 14.99 USD
Availability: OutOfStock

SKU:PLU-8f210f

Reliable threaded aluminum plugs with dimpled nose section for secure sealing. Various gasket options available. Compliant with MIL-C-5501/2, NAS-842.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

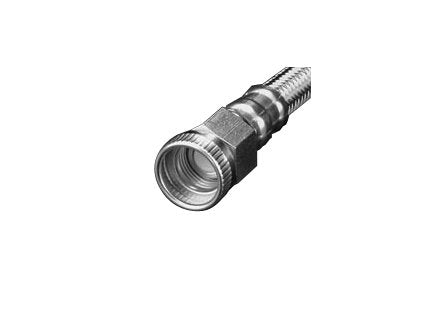

The ADP Series Threaded Aluminum Plugs are designed with a dimpled nose section that creates a secure, low pressure seal with flareless tube ends. Featuring a neoprene shoulder gasket, the ADP-GN variant ensures a positive seal on O-ring port spot faces. Choose from optional Butyl or Buna N rubber gaskets for added versatility. Crafted from 3003-0 Aluminum Alloy, these plugs meet MIL-C-5501/2 and NAS-842 specifications. With dimensions B, C, and D tailored for 5/8 in tube size and 7/8"-14 thread size, these plugs guarantee reliable performance and durability.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/2 | NAS-842

Specifications Color

Natural (silver)

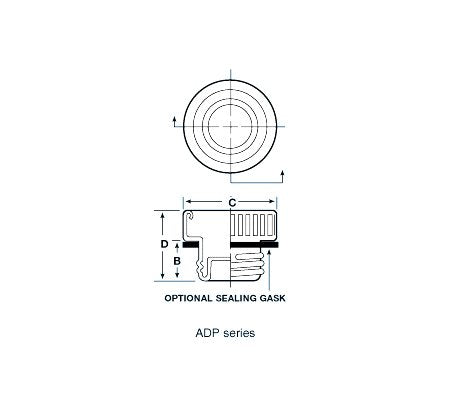

Specifications Dimension B

0.49 in

Specifications Dimension C

1.110 in

Specifications Dimension D

0.740 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

7/8"-14

Specifications To Fit Tube Size

5/8 in
