Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
SKU:PLU-bc33e8
High-quality Threaded Aluminum Plugs for Flareless Tube Assemblies, featuring dimpled nose section for low-pressure sealing and neoprene shoulder gasket for positive O-ring port seal. Meets MIL-C-5501/2 & NAS-842 specs.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
$12.99
Quantity: 1
Claim Your Seller Account
Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ADP Series Threaded Aluminum Plugs are designed with a dimpled nose section for a secure low-pressure seal on flareless tube ends, ideal for industrial applications. Equipped with a neoprene shoulder gasket, the ADP-GN model ensures a positive seal on O-ring ports. Available with Butyl or Buna N rubber gaskets. Constructed from 3003-0 Aluminum Alloy to meet MIL-C-5501/2 and NAS-842 specifications. With precise dimensions to fit 1in tubes and 1 5/16"-12 threads, the ADP Series guarantees reliable sealing and durability.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/2 | NAS-842
Specifications Color
Natural (silver)

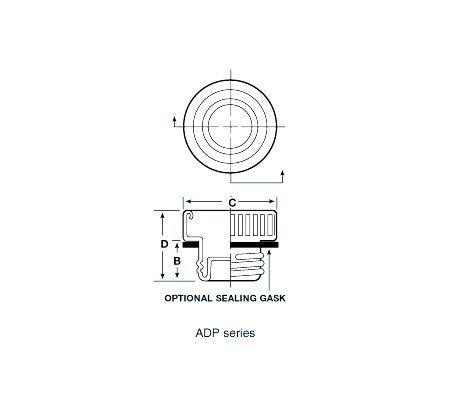

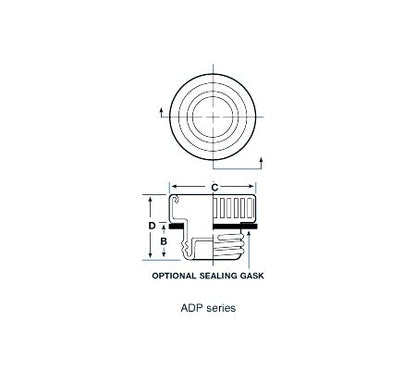

Specifications Dimension B
0.450 in
Specifications Dimension C
1.530 in
Specifications Dimension D
0.820 in
Specifications Material
3003-0 Aluminum Alloy
Specifications To Fit Thread Size
1 5/16"-12
Specifications To Fit Tube Size
1 in
