Threaded Aluminum Plugs for Flareless Tube Assemblies (ADP Series)
Threaded Aluminum Plugs for Flareless Tube Assemblies (ADP Series)
SKU:PLU-68acf7
Seamlessly seal flareless tube ends with ADP Series Threaded Aluminum Plugs. Neoprene shoulder gasket for precise O-ring port sealing. Options for Butyl or Buna N rubber gaskets.
Regular price
$18.99
Regular price
Sale price
$18.99
Unit price
per
Initiate Order
Threaded Aluminum Plugs for Flareless Tube Assemblies (ADP Series)
$18.99
Quantity: 1
Claim Your Seller Account
Threaded Aluminum Plugs for Flareless Tube Assemblies (ADP Series)
$18.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ADP Series Threaded Aluminum Plugs are designed with a dimpled nose section for a secure low-pressure seal on flareless tube ends. Featuring a neoprene shoulder gasket, such as the ADP-GN variant, these plugs offer a reliable positive seal on O-ring ports. Optional gaskets in Butyl or Buna N rubber are available, ensuring versatility and compatibility across applications. Crafted from 3003-0 Aluminum Alloy and meeting MIL-C-5501/2 and NAS-842 specifications, these plugs are engineered for precise fitment on 3/8 inch tubes with a 9/16"-18 thread size. With dimensions B, C, and D optimized for seamless installation, the ADP Series plugs combine performance, durability, and compliance.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/2 | NAS-842
Specifications Color
Natural (silver)

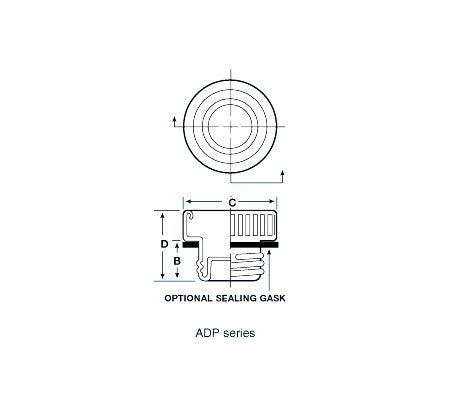

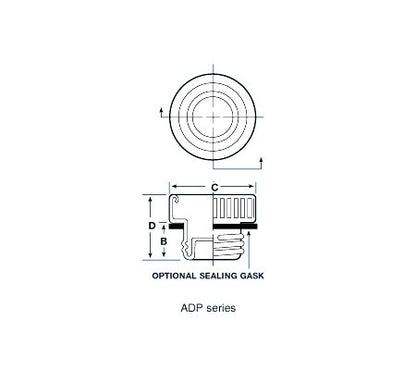

Specifications Dimension B
0.33 in
Specifications Dimension C
0.760 in
Specifications Dimension D
0.600 in
Specifications Material
3003-0 Aluminum Alloy
Specifications To Fit Thread Size
9/16"-18
Specifications To Fit Tube Size
3/8 in
