Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
SKU:PLU-be190a
High-quality Threaded Aluminum Plugs for Flareless Tube Assemblies. Dimpled nose section for low pressure seal. Neoprene shoulder gasket ensures secure O-ring port seal. Options: Butyl or Buna N rubber.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
$24.99
Quantity: 1
Claim Your Seller Account
Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ADP Series Threaded Aluminum Plugs are designed with a dimpled nose section for a low pressure seal on flareless tube ends. Featuring a neoprene shoulder gasket, the ADP-GN variant ensures a positive seal on the O-ring port's spot face. Available gasket options include Butyl or Buna N rubber, meeting institutional procurement standards such as MIL-C-5501/2 and NAS-842. With material crafted from 3003-0 Aluminum Alloy, these plugs fit 1 1/2 in tubes with a thread size of 1 7/8"-12, making them reliable and compliant solutions for various applications.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/2 | NAS-842
Specifications Color
Natural (silver)

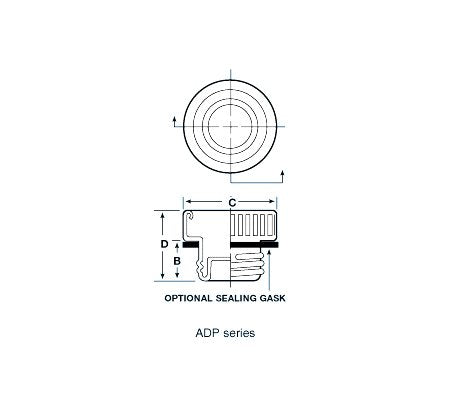

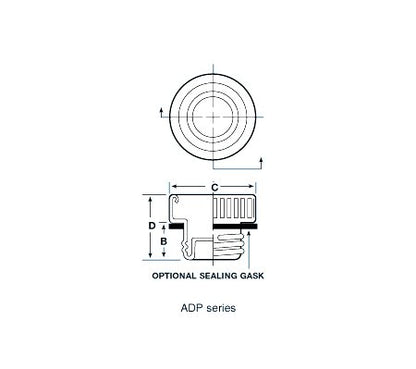

Specifications Dimension B
0.630 in
Specifications Dimension C
2.520 in
Specifications Dimension D
0.930 in
Specifications Material
3003-0 Aluminum Alloy
Specifications To Fit Thread Size
1 7/8"-12
Specifications To Fit Tube Size
1 1/2 in
