Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series

Name: Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-60dc61
Price: 14.99 USD
Availability: OutOfStock

SKU:PLU-60dc61

Secure low-pressure sealing aluminum plugs for flareless tubes, neoprene gasket, MIL-C-5501/2 & NAS-842 compliant

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

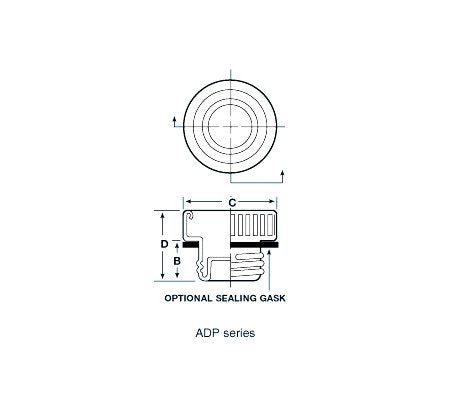

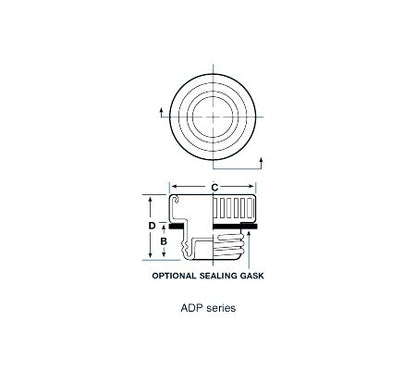

The ADP Series Threaded Aluminum Plugs are designed with a dimpled nose section for a secure low-pressure seal on flareless tube ends. Featuring a neoprene shoulder gasket for a positive seal on O-ring ports, these plugs also offer optional Butyl or Buna N rubber gaskets. Constructed from 3003-0 Aluminum Alloy, these plugs meet MIL-C-5501/2 and NAS-842 specifications. With dimensions B, C, and D of 0.470 in, 1.38 in, and 0.81 in respectively, they fit 3/4 in tube size with a thread size of 1 1/16"-12.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/2 | NAS-842

Specifications Color

Natural (silver)

Specifications Dimension B

0.470 in

Specifications Dimension C

1.38 in

Specifications Dimension D

0.81 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

1 1/16"-12

Specifications To Fit Tube Size

3/4 in

Threaded Aluminum Plugs for Flareless Tube Assemblies - ADP Series
