Threaded Aluminum Plugs for Flareless Tube & Hose Assemblies - ADP Series

Name: Threaded Aluminum Plugs for Flareless Tube & Hose Assemblies - ADP Series
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-f53c42
Price: 24.99 USD
Availability: OutOfStock

SKU:PLU-f53c42

Precision-engineered ADP Series Threaded Aluminum Plugs for secure, leak-free connections with flareless tube ends. Optional rubber gaskets available.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ADP Series Threaded Aluminum Plugs are designed with a dimpled nose section to create a reliable low-pressure seal with flareless tube ends. Featuring a neoprene shoulder gasket, like the ADP-GN variant, these plugs offer a positive seal on the O-ring port's spot face. Optional Butyl or Buna N rubber gaskets are also available for added versatility. Constructed from 3003-0 Aluminum Alloy, meeting MIL-C-5501/2 and NAS-842 specifications, with precise dimensions to fit 5/16" tubes and 1/2"-20 threads, ensuring secure and leak-free connections.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/2 | NAS-842

Specifications Color

Natural (silver)

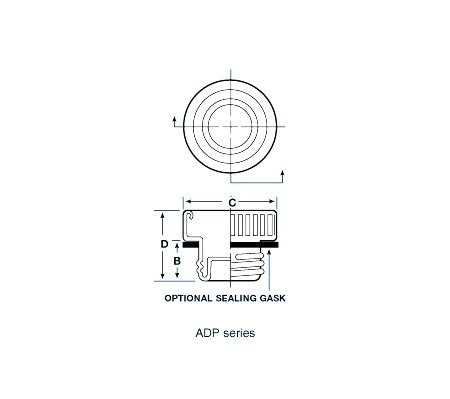

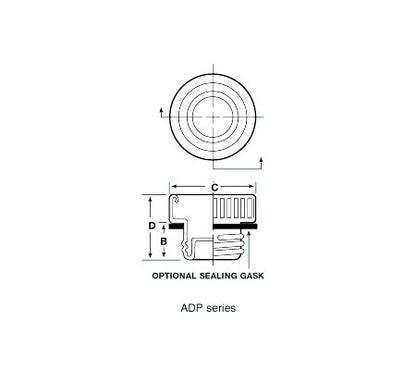

Specifications Dimension B

0.32 in

Specifications Dimension C

0.700 in

Specifications Dimension D

0.550 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

1/2"-20

Specifications To Fit Tube Size

5/16 in
