Threaded Aluminum Plugs for Flat-Faced O-Ring Hydraulic Fittings - AFO Series
Threaded Aluminum Plugs for Flat-Faced O-Ring Hydraulic Fittings - AFO Series
SKU:PLU-67c4ed
Durable Threaded Aluminum Plugs for Hydraulic Fittings with Optional Sealing Gaskets. Precision-made for secure fluid line protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Threaded Aluminum Plugs for Flat-Faced O-Ring Hydraulic Fittings - AFO Series
$24.99
Quantity: 1
Claim Your Seller Account
Threaded Aluminum Plugs for Flat-Faced O-Ring Hydraulic Fittings - AFO Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

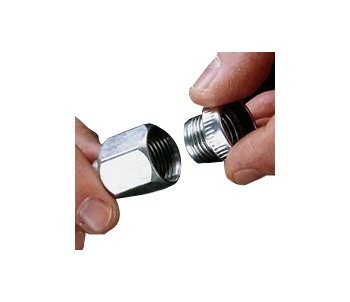

The AFO Series Threaded Aluminum Plugs provide robust protection for fluid lines and fittings with their metal-to-metal threaded design. Crafted from 3003-0 Aluminum Alloy, these plugs offer exceptional durability and corrosion resistance. Optional neoprene gaskets enhance sealing, while Butyl or Buna N rubber gasket options cater to varied application needs. Featuring precise dimensions and a natural silver color, these plugs are compatible with 1 11/16"-12 thread sizes, ensuring a secure fit for hydraulic systems.
Product Specifications
Specifications Color
Natural (silver)

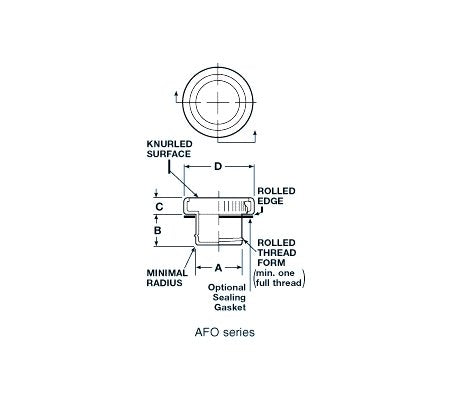

Specifications Dimension A
1.582 in
Specifications Dimension B
0.890 in
Specifications Dimension C
0.350 in
Specifications Dimension D
2.310 in
Specifications Material
3003-0 Aluminum Alloy
Specifications To Fit Thread Size
1 11/16"-12
