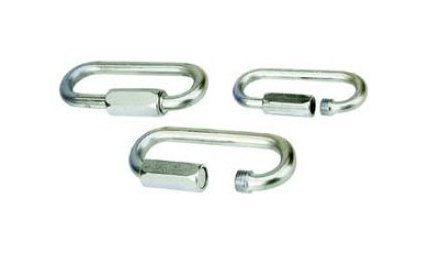

Threaded Chain Connectors for Cable Pulling and Stringing
Threaded Chain Connectors for Cable Pulling and Stringing
SKU:PUL-b80f85
Enhance cable pulling operations with our durable Threaded Chain Connectors. Secure, easy-to-use connectors for winch lines, harnesses, and ropes.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Chain Connectors for Cable Pulling and Stringing
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Chain Connectors for Cable Pulling and Stringing
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

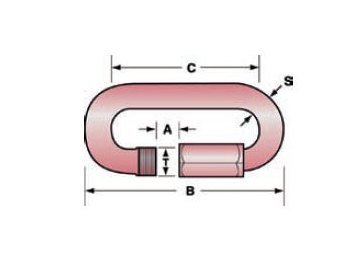

Upgrade your cable pulling and stringing operations with these high-strength Threaded Chain Connectors. Designed to effortlessly connect pulling eyes or swivels to winch lines, harnesses, or ropes, these connectors boast a robust work load limit of 7935 lb. (35295 N). The threaded shaft ensures a secure closure by simply screwing the nut onto the end. Featuring dimensions of 0.781" S (19.8mm) stock diameter, 0.93" T (24mm) threaded shaft, and A: 1.375" (34.9mm), B: 7.813" (198.4mm), C: 6.250" (159mm), these connectors are a versatile solution for cable stringing or pulling tasks. Suitable for 7/8" (22mm) stock size and a pulling eye cable size range of 1000 to 2500 kcmil.
Product Specifications
Specifications Dimension A In
1.375
Specifications Dimension A Mm
34.9
Specifications Dimension B In
7.813
Specifications Dimension B Mm
198.4
Specifications Dimension C In
6.250
Specifications Dimension C Mm
159
Specifications Eye To Eye Connectors Size
All
Specifications Pulling Eye Cable Size Range
1000 to 2500 kcmil
Specifications Pulling Harnesses Large Front Link
All
Specifications Pulling Harnesses Separate Leg Ends
All
Specifications Size In
7/8
Specifications Size Mm
22
Specifications Stock Diameter S In
0.781
Specifications Stock Diameter S Mm
19.8
Specifications Threaded Shaft T In
0.93
Specifications Threaded Shaft T Mm
24
Specifications Work Load Limit Lb
7935
Specifications Work Load Limit N
35295
