Threaded Chain Connectors for High Load Applications

Name: Threaded Chain Connectors for High Load Applications
Brand: Colonial Teltek
SKU: PUL-61faa2
Price: 45.99 USD
Availability: OutOfStock

SKU:PUL-61faa2

Securely connect pulling eyes or swivels for cable stringing and pulling operations. Reusable, easy to install, and designed for high-load applications.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

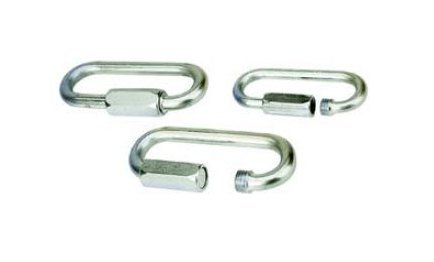

Enhance your cable stringing and pulling operations with our Threaded Chain Connectors. Designed to securely connect pulling eyes or swivels to winch lines, harnesses, or rope, these connectors offer a quick and reliable solution for high-load applications. With a work load limit of 4410 lb. (19616 N), and dimensions tailored for efficiency and durability, these connectors ensure a safe and efficient cable handling experience. Reusable and easy to install by simply screwing the nut onto the threaded end, these connectors are an essential tool for cable stringing and pulling projects, meeting industry standards for quality and performance.

Product Specifications

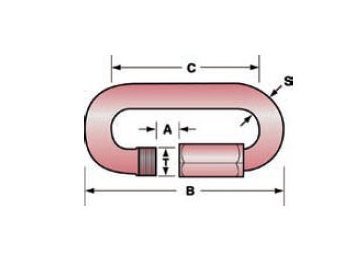

Specifications Dimension A In

1.063

Specifications Dimension A Mm

27.0

Specifications Dimension B In

5.563

Specifications Dimension B Mm

141.3

Specifications Dimension C In

4.500

Specifications Dimension C Mm

114

Specifications Eye To Eye Connectors Size

All

Specifications Pulling Eye Cable Size Range

350, 500, 1000 to 2500 kcmil

Specifications Pulling Harnesses Large Front Link

All

Specifications Pulling Harnesses Separate Leg Ends

All

Specifications Size In

9/16

Specifications Size Mm

Specifications Stock Diameter S In

0.563

Specifications Stock Diameter S Mm

14.3

Specifications Threaded Shaft T In

0.67

Specifications Threaded Shaft T Mm

Specifications Work Load Limit Lb

4410

Specifications Work Load Limit N

19616

Threaded Chain Connectors for High Load Applications
