Threaded Check Valves with Nitrile Seal

Name: Threaded Check Valves with Nitrile Seal
Brand: O'Keefe Controls Co.
SKU: CHE-6d91dd
Price: 45.99 USD
Availability: OutOfStock

SKU:CHE-6d91dd

Premium Threaded Check Valves for reliable fluid control. 303 SS construction, Nitrile Seal, max 1400 kPa pressure. Ideal for industrial use.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

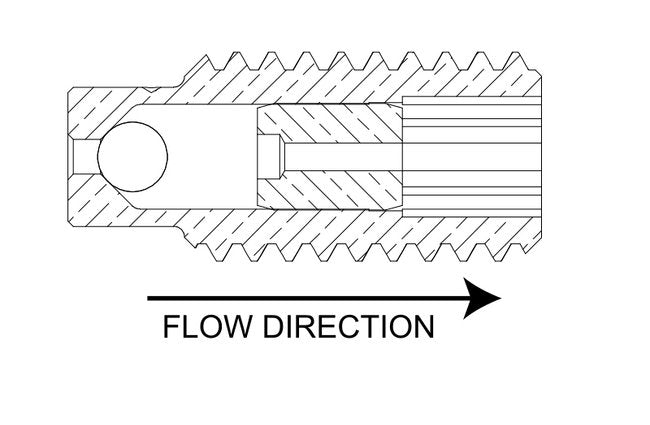

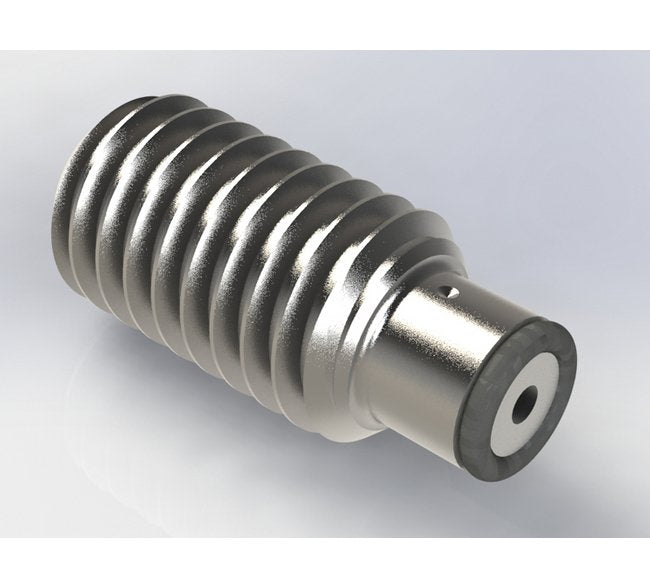

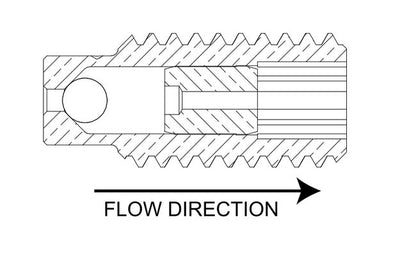

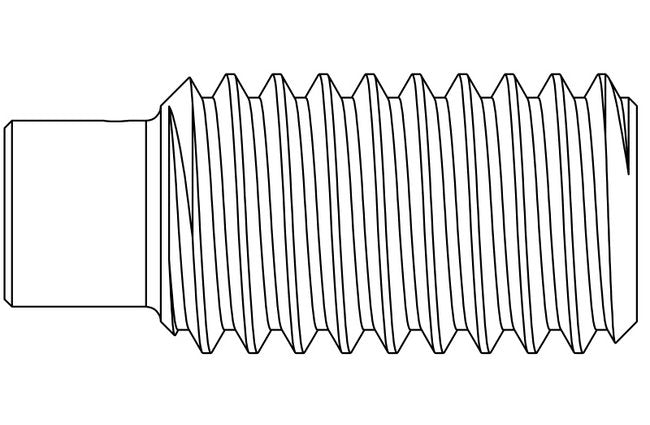

Upgrade your fluid control system with our Threaded Check Valves featuring Nitrile Seal. Constructed with 303 SS and a durable 440C-SS ball, these valves ensure long-lasting, leak-free operation with a maximum pressure of 1400 kPa. The metal to metal seat design guarantees reliability and low maintenance, making them ideal for industrial applications.

Product Specifications

Dimensions Nose Diameter

5.59 mm

Dimensions Orifice Diameter

0.038 in | 0.97 mm

Dimensions Thread Size

Dimensions Total Length

16.3 mm

Dimensions Width Across Flats Hex

4 mm

Features Features

All metal construction option Long life operation Low cost

Specifications Ball Material

440C-SS

Specifications Connection A

M8 Threaded Insert O-Ring seal

Specifications Cv

0.032

Specifications Hex Type

Internal

Specifications Material

303 SS

Specifications Maximum Operating Pressure

1400 kPa

Specifications Nominal Orifice Size

Specifications Screened

None

Specifications Seal Material

Nitrile

Specifications Seat Leakage

20 SSCM (max.) air flow at 25 psi differential

Specifications Thread

Male
