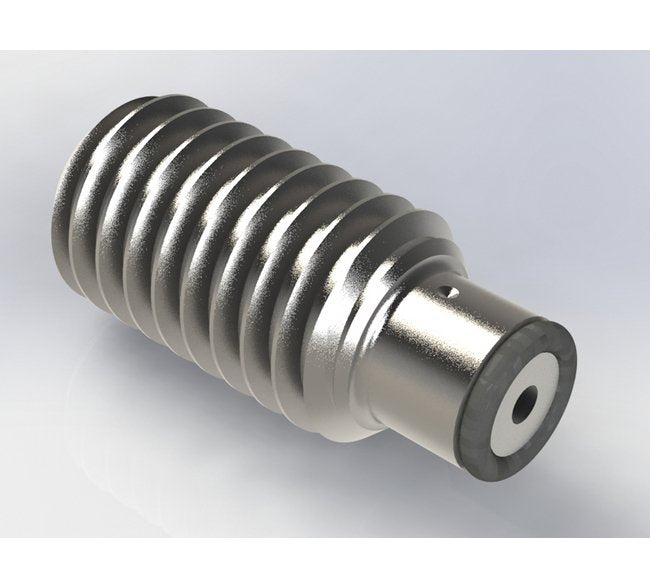

Threaded Check Valves with Nitrile Seal

Name: Threaded Check Valves with Nitrile Seal
Brand: O'Keefe Controls Co.
SKU: CHE-bf83fe
Price: 49.99 USD
Availability: OutOfStock

SKU:CHE-bf83fe

Efficient Threaded Check Valves with Nitrile Seals for precise flow control and durable performance in industrial applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

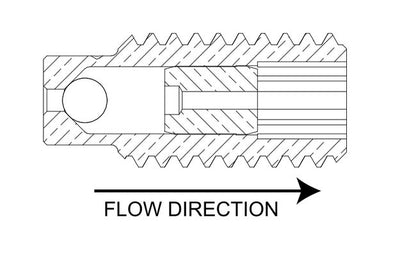

Designed for precise flow control, these Threaded Check Valves feature durable Nitrile seals and 303 SS construction for longevity and reliability. With a maximum operating pressure of 875 kPa and leak-proof design, these valves ensure efficient performance in various industrial settings. Compliant with Federal/DoD procurement standards and FAR regulations, they are ideal for institutional and government applications.

Product Specifications

Dimensions Nose Diameter

5.59 mm

Dimensions Orifice Diameter

0.0760 in | 1.93 mm

Dimensions Thread Size

Dimensions Total Length

16.3 mm

Dimensions Width Across Flats Hex

4 mm

Features Features

All metal construction option Long life operation Low cost

Specifications Ball Material

Nitrile

Specifications Connection A

M8 Threaded Insert O-Ring seal

Specifications Cv

0.130

Specifications Hex Type

Internal

Specifications Material

303 SS

Specifications Maximum Operating Pressure

875 kPa

Specifications Maximum Temperature

65 ÂºF

Specifications Nominal Orifice Size

Specifications Screened

None

Specifications Seal Material

Nitrile

Specifications Seat Leakage

6 SCCM (max.) air flow at greater than 50 psi differential

Specifications Thread

Male

Threaded Check Valves with Nitrile Seal
