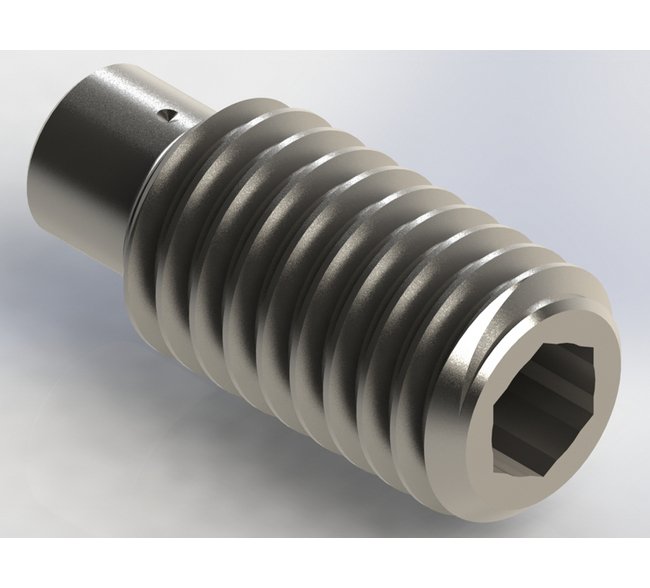

Threaded Check Valves with Nose Seal

Name: Threaded Check Valves with Nose Seal
Brand: O'Keefe Controls Co.
SKU: CHE-90505b
Price: 35.99 USD
Availability: OutOfStock

SKU:CHE-90505b

Durable Threaded Check Valves with precise fluid control and minimal leakage. Ideal for institutional use.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance fluid control with our Threaded Check Valves featuring a durable 303 SS construction, Loctite 542 seal material, and metal to metal seat design. With a maximum operating pressure of 7000 kPa and minimal seat leakage of 20 SSCM, these valves ensure reliable performance. Ideal for institutional settings requiring precision and longevity.

Product Specifications

Dimensions Nose Diameter

3.10 mm

Dimensions Orifice Diameter

0.031 in | 0.79 mm

Dimensions Thread Size

Dimensions Total Length

10.8 mm

Dimensions Width Across Flats Hex

2.5 mm

Features Features

All metal construction option Long life operation Low cost

Specifications Ball Material

440C-SS

Specifications Connection A

M5 Threaded Insert

Specifications Cv

0.022

Specifications Hex Type

Internal

Specifications Material

303 SS

Specifications Maximum Operating Pressure

7000 kPa

Specifications Nominal Orifice Size

Specifications Screened

None

Specifications Seal Material

Loctite 542

Specifications Seat Leakage

20 SSCM (max.) air flow at 25 psi differential

Specifications Thread

Male

Threaded Check Valves with Nose Seal
