Threaded Circuit Board Support 6-32 Chassis Mount
Threaded Circuit Board Support 6-32 Chassis Mount
SKU:01C-f0f722
Secure your PCB with Threaded Circuit Board Support 6-32 Chassis Mount. Compliant with ASTM standards and RoHS, ideal for institutional circuit board installations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Threaded Circuit Board Support 6-32 Chassis Mount
$49.99
Quantity: 1
Claim Your Seller Account
Threaded Circuit Board Support 6-32 Chassis Mount
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

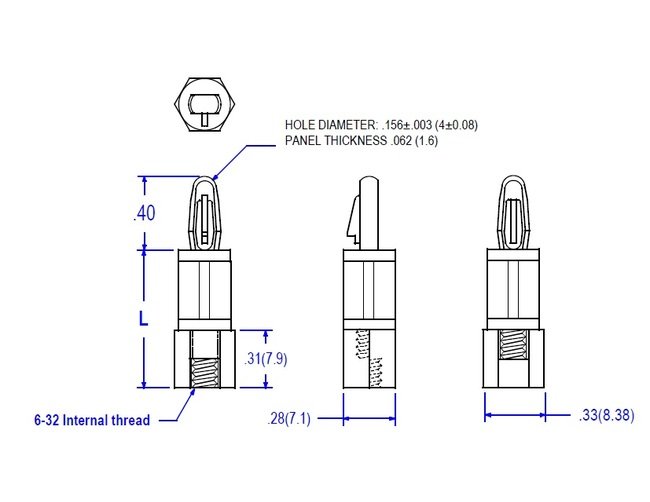

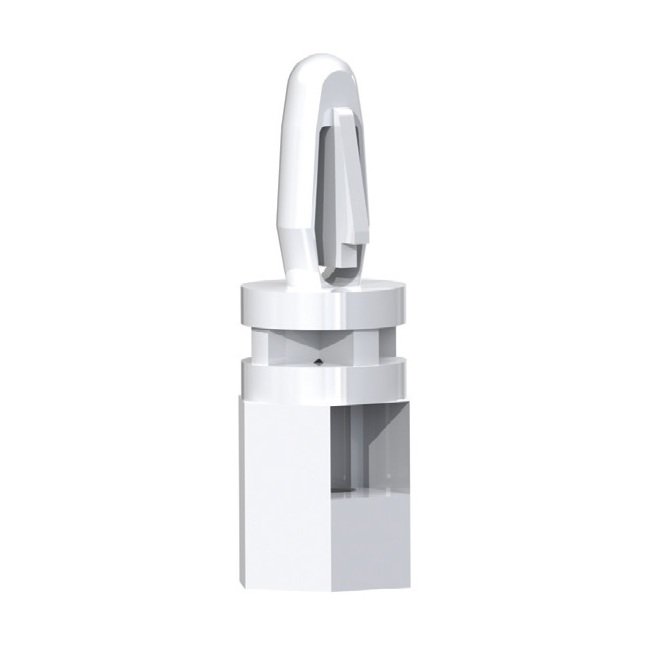

The Threaded Circuit Board Support 6-32 Chassis Mount from the 76 Series is a locking solution designed for secure PCB mounting. Featuring a female #6-32 threaded design, this support is crafted from Nylon 66 UL94V-2 material, with UL94V-0 option available upon request. Compliant with ASTM D 4066, PA111, and RoHS, this support offers a temperature range of -40 to 185F (-40 to 85C). Packaged in quantities of 1000 per bag, it comes with a .156 PCB mounting hole and dimensions of .875 inches (22.2mm), ensuring reliable and durable chassis mounting for circuit boards.
Product Specifications
Specifications Dim L
.875 (22.2) inches (mm)
