High voltage, non-shielded double-ended cable assembly for specialized applications. 18 kVDC rating, silicone rubber seal, and FEP cable insulation.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

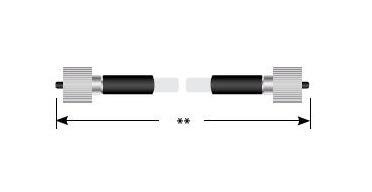

The Threaded Double-Ended Cable Assembly from the Century+ Series offers reliable non-shielded connectivity for high voltage applications, rated at 18 kVDC. Designed for specialized applications like Laser Gyroscopes and ECM devices, this assembly features a Silicone Rubber interface seal, 12A current rating, and FEP cable insulation. With compatibility across all Century+ series receptacles, this non-standard part ensures secure connections in demanding environments.

Product Specifications

Body Properties Coupling Nut Material

CRES | Stainless Steel

Contact Properties Contact Material

BeCu/Au with CRES Hood

Contact Properties Contact Size

Contact Properties Contact Type

Female

Specifications Altitudereduced Pressure Rating

70,000 ft.

Specifications Assembly Type

Double-Ended Plug Cable Assembly

Specifications Braid Termination

Band

Specifications Coupling Style

Threaded

Specifications Current Rating

TBD

Specifications Current Rating Rms

12 A

Specifications Export Classification

TBD

Specifications Insulator Material

Plastic

Specifications Interface Seal

Silicone Rubber

Specifications Mating Compatibility

Mates all century plus series threaded receptacles.

Specifications Operating Temperature

-55 to 125 ÂºC

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

N/A

Specifications Series

Century+

Specifications Standardnon Standard

Non-standard Part

Specifications Test Voltage

25 kVDC at 70,000 ft. (simulated) at ambient temperature

Specifications Voltage Rating

18 kVDC

Specifications Wire Insulation

0.110 in. diameter silicone coated FEP | FEP

Specifications Wire Type

Non-Shielded
