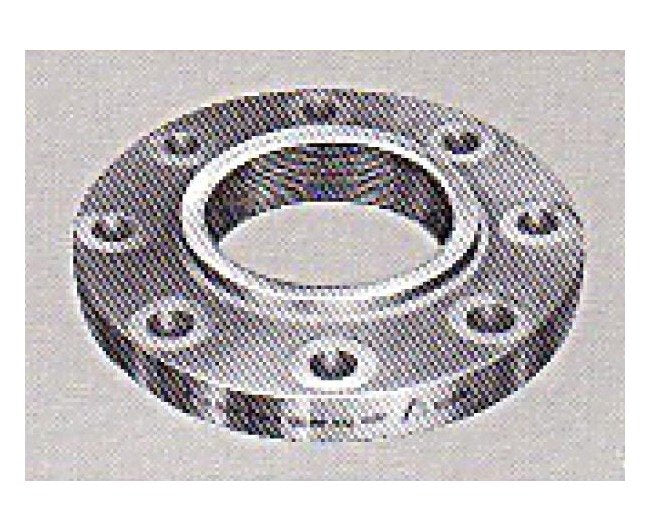

Threaded Forged Steel Class 150 Flange - 4-inch
Threaded Forged Steel Class 150 Flange - 4-inch
SKU:FIT-f347e1
High-quality Threaded Forged Steel Flange - 4"; Class 150 compliant, durable design for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Threaded Forged Steel Class 150 Flange - 4-inch
$129.99
Quantity: 1
Claim Your Seller Account
Threaded Forged Steel Class 150 Flange - 4-inch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Forged Steel Class 150 Flange in 4-inch size is engineered to meet the rigorous requirements of industrial applications. With precise specifications including a nominal pipe size of 4 inches, 0.94 inches thickness, and a durable construction, this flange ensures reliable performance. Featuring Class 150 standards, raised face design, and compliance with industry norms, it offers exceptional strength and corrosion resistance for diverse fitting needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

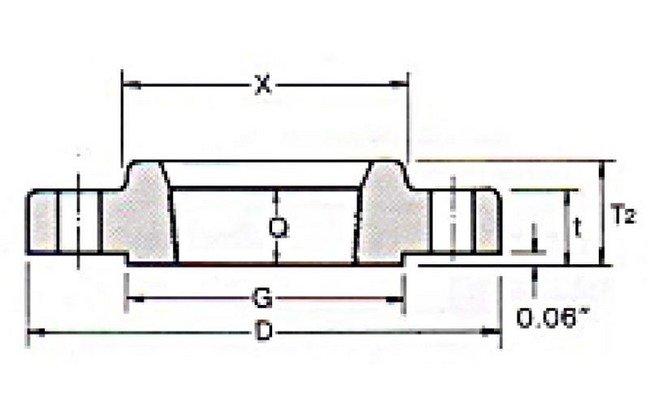

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
12.70 lbs
Specifications Bolt Circle Diameter
7.50 inches
Specifications Diameter At Base Of Hub X
5.31 inches
Specifications Diameter Of Bolts
5/8 inches
Specifications Diameter Of Holes
0.75 inches
Specifications Length Thru Hub T2
1.31 inches
Specifications Machine Bolt Length Raised Face
3.00 inches
Specifications Nominal Pipe Size
4 inches
Specifications Number Of Holes
8
Specifications Od Of Raised Face G
6.19 inches
Specifications Outside Diameter D
9.00 inches
Specifications Stud Bolt Length Raised Face
3.50 inches
Specifications Stud Bolt Length Ring Joint
4.00 inches
Specifications Thickness T
0.94 inches
Specifications Thread Length Q
1.31 inches
