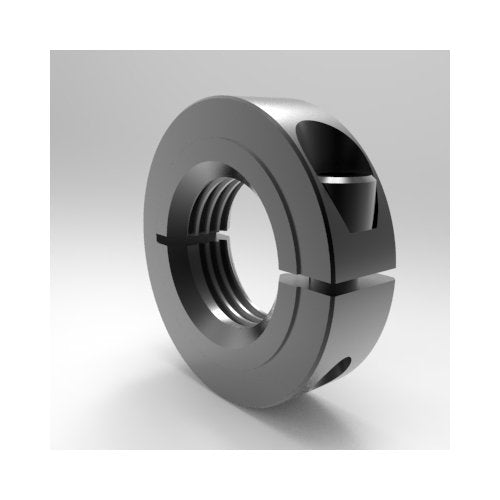

Threaded Hub Collars 3/4-16 UNF/UNC One-Piece Split Clamp-Type

Name: Threaded Hub Collars 3/4-16 UNF/UNC One-Piece Split Clamp-Type
Brand: Stafford Manufacturing Corp.
SKU: ROU-8754ea
Price: 15.99 USD
Availability: OutOfStock

SKU:ROU-8754ea

Premium Threaded Hub Collars for UNF/UNC Shafts, high clamping power, easy adjustment, black oxide finish, USA-made.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Threaded Hub Collars offer precision-machined hubs that minimize contact area, ideal for bearing inner-race applications. Constructed with high-quality steel, featuring a black oxide finish, these collars provide superior clamping power over set-screw types. Non-marring and easy to adjust, these collars are designed for standard UNF/UNC shafts, ensuring reliable performance and minimal friction. UPC and RoHS2 compliant, made in the USA.

Product Specifications

Dimensional Attributes Outside Diameter

1.500 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

3/4-16

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.17 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB7L012F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786029974
