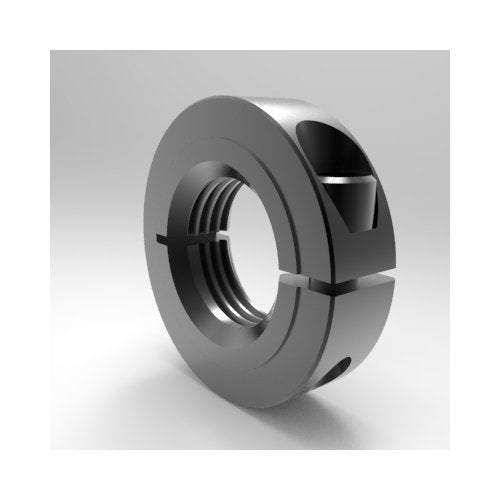

Threaded Hub Split Shaft Collar - UNF/UNC Threaded One-Piece Clamp

Name: Threaded Hub Split Shaft Collar - UNF/UNC Threaded One-Piece Clamp
Brand: Stafford Manufacturing Corp.
SKU: ROU-50da6f
Price: 14.99 USD
Availability: OutOfStock

SKU:ROU-50da6f

Precision-machined for UNF shafts, high clamping power, non-marring design, RoHS2 & REACH compliant, made in the USA.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UNF/UNC Threaded Hub Collars are precision-machined for standard UNF shafts, offering superior holding power over set-screw collars. Featuring a non-marring design with a limited contact area on the face, these collars are ideal for use as bearing inner-races. Easy to adjust and with high clamping power, these steel collars ensure optimal performance. RoHS2 and REACH compliant. Made in the USA.

Product Specifications

Dimensional Attributes Outside Diameter

1.313 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

10-32 x 5/8

Dimensional Attributes Threaded Bore Size

5/8-18

Dimensional Attributes Width

0.438 in

Specifications Alloy

1215

Specifications Approximate Weight

0.12 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB7L010F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786029950
