Threaded In-Line Check Valve 1 1/2" 7.8 psig Restrictor

Threaded In-Line Check Valve 1 1/2" 7.8 psig Restrictor

INL-cacbf6

Versatile Threaded In-Line Check Valve with 2-40 psi cracking pressure, stainless steel construction, and ANSI/MSS compliance.

$149.99
$149.99
Sale

Initiate Order

Threaded In-Line Check Valve 1 1/2" 7.8 psig Restrictor

Threaded In-Line Check Valve 1 1/2" 7.8 psig Restrictor

$149.99

Quantity: 1

Claim Your Seller Account

Threaded In-Line Check Valve 1 1/2" 7.8 psig Restrictor

Threaded In-Line Check Valve 1 1/2" 7.8 psig Restrictor

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Threaded In-Line Check Valve 1 1/2" 7.8 psig Restrictor is a versatile solution designed for applications requiring higher cracking pressures. With cracking pressures ranging from 2 to 40 psi, this spring-assisted check valve ensures reliable performance with a variety of fluids and gases under different pressure and temperature conditions. Featuring stainless steel construction, tight shut-off with a lapped disc and seat, and easy maintenance, this valve is suitable for horizontal or vertical installations across various industries. Compliant with ANSI B1.20.1, MSS SP-25, and suitable for applications including autoclaves, boiler feed, chemical lines, and more, this check valve offers exceptional performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 470ºF)
Codes And Standards Ansi
B1.20.1
Codes And Standards Astm
303 SS not acceptable for CRN
Codes And Standards Mss
SP-25
Features 0
Higher cracking pressures (2 to 40 psi)1/4" to 2 1/2" Line size450 to 2500 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy maintenanceVersatile

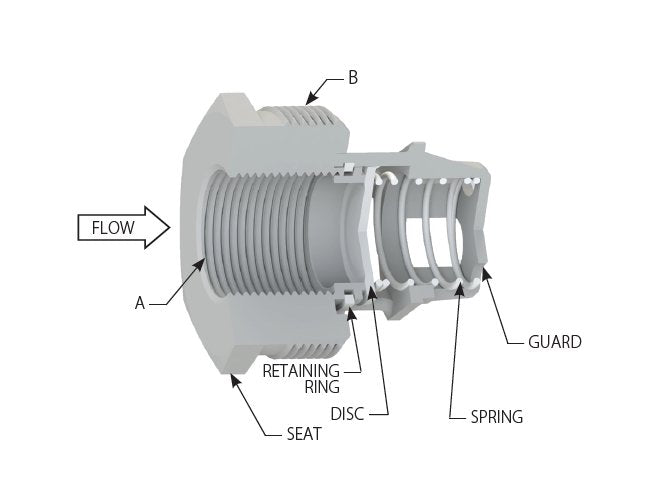

Materials Of Construction Disc
316 SS
Materials Of Construction Guard
CF8M
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
303 SS
Materials Of Construction Spring
302 SS
Options 0
Soft seat
Specifications Approx Net Weight Each
3.75 lb | 1.7 kg
Specifications Cold Working Pressure
0 psig | 700 psig | 0 barg | 48.3 barg
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
11
Specifications Friction Loss Meter Of Pipe
3.4
Specifications Outside Thread Mnpt B
3.00 in
Specifications Series
Restrictor Check
Specifications Valve Cracking Pressure
7.8 psi | 0.538 bar
Specifications Valve Cracking Pressure Tolerance
±10%
