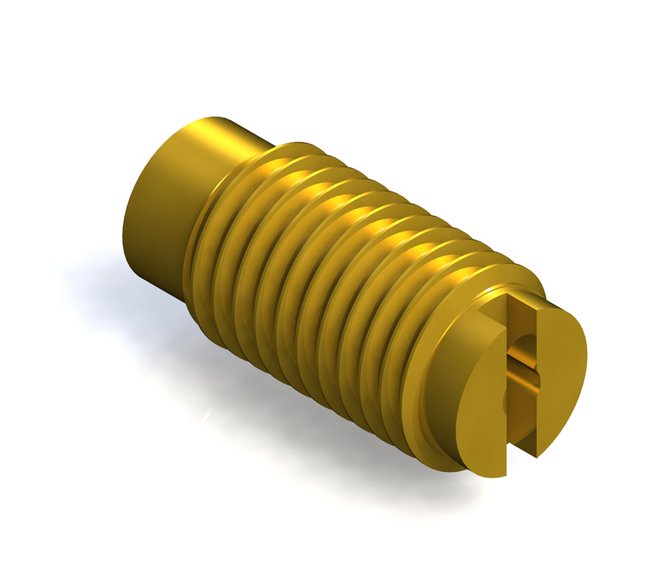

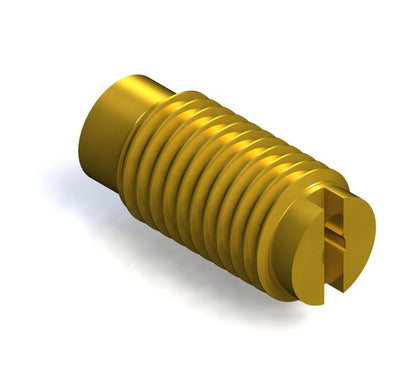

Threaded Insert Ball Check Valve - Brass with Viton Seal
Threaded Insert Ball Check Valve - Brass with Viton Seal
SKU:CHE-dd8540
Premium Threaded Insert Ball Check Valve - Brass construction, Viton Seal, ideal for diverse applications
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valve - Brass with Viton Seal
$39.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valve - Brass with Viton Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Ball Check Valve is a premium-quality valve designed for reliable performance in both consumer and institutional settings. Crafted from durable Brass with a Viton Seal, this valve ensures efficient flow control and minimal leakage. With a CV of 0.02, operating temperature of up to 150 ºF, and maximum pressure rating of 125 psig, it meets stringent industry standards for safety and functionality. The 304 SS Ball and 10-32 UNF Threaded Insert O-ring seal provide superior durability and longevity, making it an ideal choice for various applications.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
