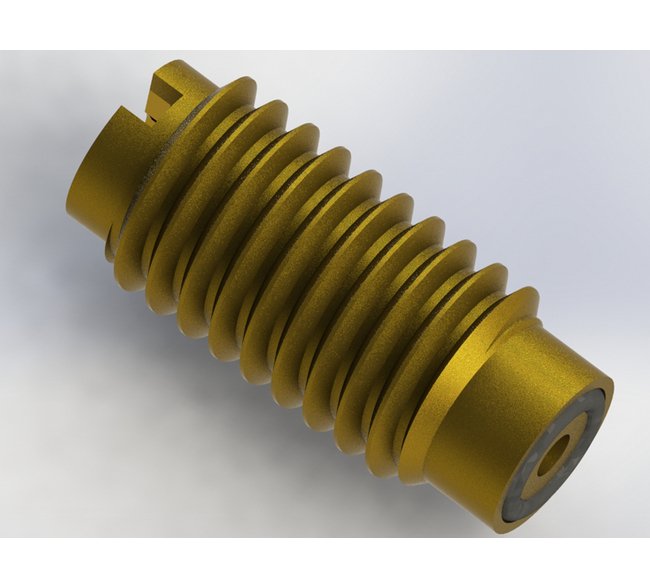

Threaded Insert Ball Check Valve with Brass Body and Viton Seal

Name: Threaded Insert Ball Check Valve with Brass Body and Viton Seal
Brand: O'Keefe Controls Co.
SKU: CHE-c9516b
Price: 29.99 USD
Availability: OutOfStock

SKU:CHE-c9516b

Durable brass body Check Valve with Viton seal for high pressure applications. Ideal for precise flow control.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Threaded Insert Ball Check Valve features a durable brass body and Viton seal, ensuring reliable performance under high pressure and temperature conditions. With a 304 SS ball and a cracking pressure of 10 psid, this valve is suitable for applications requiring precise flow control. Meeting industry standards for Maximum Operating Pressure of 200 psig and Maximum Temperature of 300 °F, this valve offers both functionality and durability for a wide range of industrial applications.

Product Specifications

Dimensions Thread Size

5/16-24

Dimensions Total Length

0.669 in

Specifications Ball Material

304 SS

Specifications Connection A

5/16-24 UNF Threaded Insert O-ring seal

Specifications Cracking Pressure

10 psid

Specifications Cv

0.081

Specifications Material

Brass

Specifications Maximum Operating Pressure

200 psig

Specifications Maximum Temperature

300 ÂºF

Specifications Screened

None

Specifications Seal Material

Viton

Specifications Thread

Male
