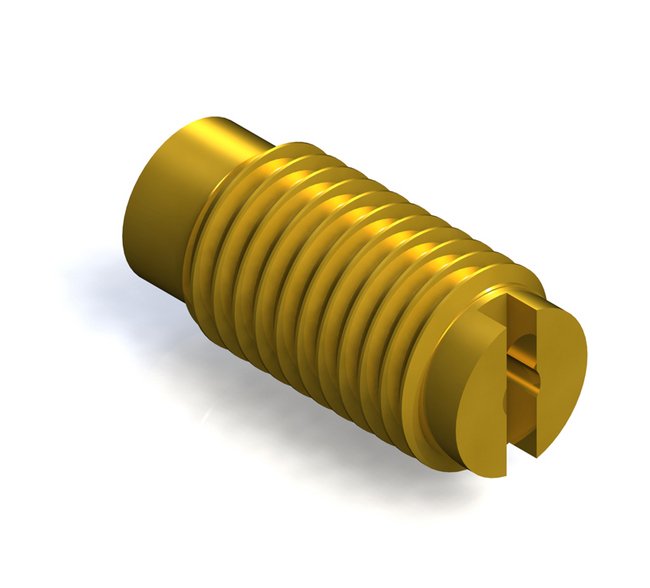

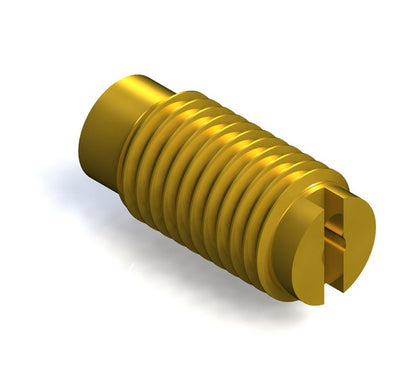

Threaded Insert Ball Check Valve with Metal Seat
Threaded Insert Ball Check Valve with Metal Seat
SKU:CHE-5e51f9
Reliable Threaded Insert Ball Check Valve with Brass construction, Viton Seal, and 304 SS Ball. Ideal for industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valve with Metal Seat
$24.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valve with Metal Seat
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Ball Check Valve with Metal Seat is crafted from durable Brass with a Viton Seal and a 304 SS Ball. With a CV of 0.02 and a maximum temperature of 150°F, this valve ensures reliable performance. Featuring a Male Thread Connection, 10-32 UNF Threaded Insert O-ring seal, and a compact Total Length of 0.425 inches, it offers secure installation and minimal seat leakage of 20 SSCM. Ideal for industrial applications requiring precision and longevity.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
