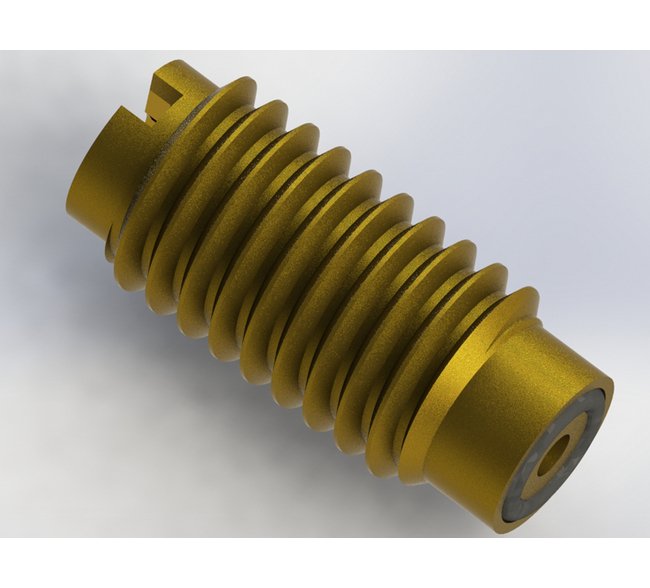

Threaded Insert Ball Check Valve with Metal Seat
Threaded Insert Ball Check Valve with Metal Seat
SKU:CHE-e7b77b
High-performance Ball Check Valve with Metal Seat for reliable backflow prevention. Brass construction with Viton seal, suitable for various applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valve with Metal Seat
$34.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valve with Metal Seat
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Ball Check Valve with Metal Seat is a durable and reliable solution for preventing backflow in fluid systems. Constructed with high-quality Brass and featuring a Viton seal, this valve ensures optimal performance under varying conditions. The 304 SS Ball provides excellent corrosion resistance and longevity. With a Cracking Pressure of 0 psid, Maximum Operating Pressure of 200 psig, and a Maximum Temperature of 300 °F, this valve is suitable for a wide range of industrial applications. The 7/16-20 UNF Threaded Insert O-ring seal ensures a secure connection, making it ideal for government and institutional procurement needs.
Product Specifications
Dimensions Thread Size
7/16-20
Dimensions Total Length
0.781 in
Specifications Ball Material
304 SS
Specifications Connection A
7/16-20 UNF Threaded Insert O-ring seal
Specifications Cracking Pressure
0 psid
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Thread
Male
