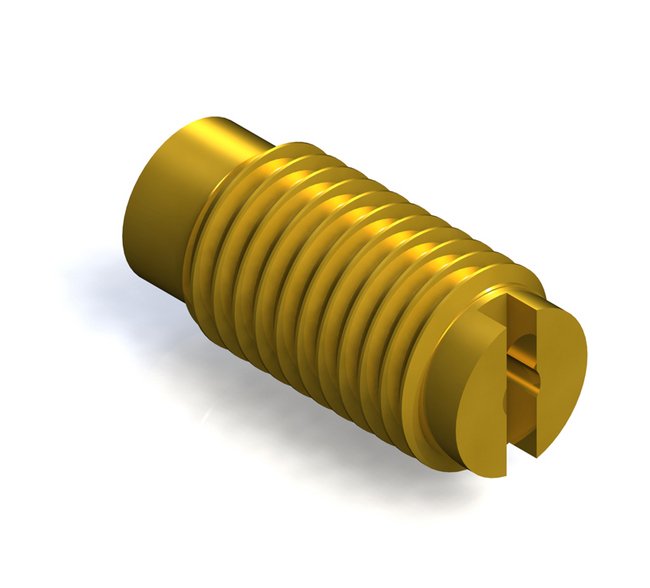

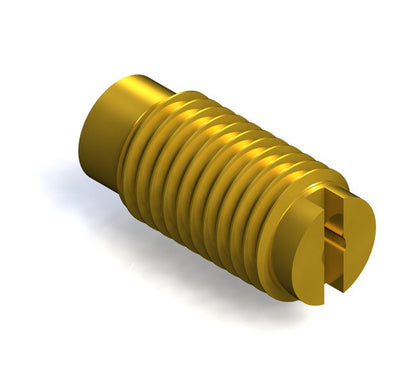

Threaded Insert Ball Check Valve with Metal Seat
Threaded Insert Ball Check Valve with Metal Seat
SKU:CHE-48f111
Reliable Threaded Insert Ball Check Valve for efficient flow control. Brass construction, metal-to-metal seating, and 304 SS Ball. Max pressure 200 psig.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valve with Metal Seat
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valve with Metal Seat
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Ball Check Valve with Metal Seat is a premium-quality valve designed for reliable performance in various applications. Constructed with durable Brass and a 304 SS Ball, this valve ensures long-term durability. With a CV of 0.190, maximum temperature of 300 °F, and maximum operating pressure of 200 psig, it delivers efficient flow control. The male threaded connection with 7/16-20 UNF Threaded Insert O-ring seal ensures secure installation, while the metal-to-metal seating design minimizes leakage to 20 SSCM (max.). Compliant with industry standards, this valve is a dependable choice for institutional procurement needs.
Product Specifications
Dimensions Thread Size
7/16-20
Dimensions Total Length
0.781 in
Specifications Ball Material
304 SS
Specifications Connection A
7/16-20 UNF Threaded Insert O-ring seal
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
