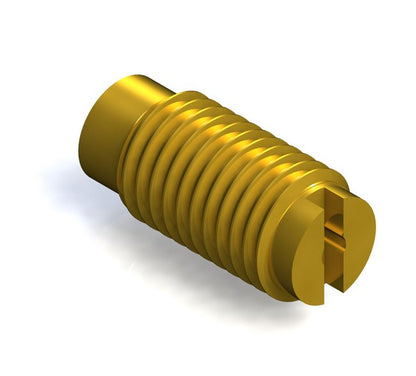

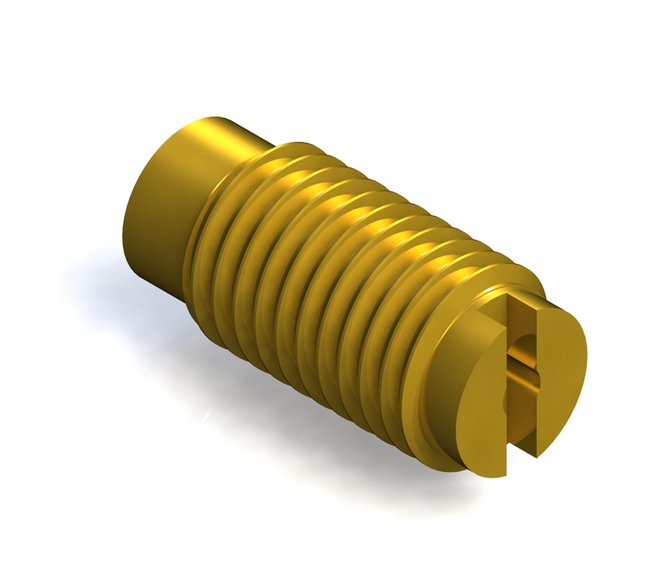

Threaded Insert Ball Check Valve with Metal Seat
Threaded Insert Ball Check Valve with Metal Seat
SKU:CHE-c14159
Reliable Threaded Insert Ball Check Valve for precise flow control. Brass construction, 304 SS ball, max temp 150°F, 125 psig. Male 10-32 UNF Threaded Insert, seat leakage 20 SSCM at 25psi.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valve with Metal Seat
$34.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valve with Metal Seat
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Ball Check Valve with Metal Seat is crafted from durable Brass with a 304 SS ball, ensuring reliability under pressure. With a low CV of 0.02, this valve can handle a maximum temperature of 150°F and operating pressure of 125 psig. The male 10-32 UNF Threaded Insert design with O-ring seal provides secure connection and minimizes seat leakage to just 20 SSCM at 25 psi. Measuring 0.425 inches in total length, this valve is ideal for applications requiring precision flow control and minimal maintenance.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
