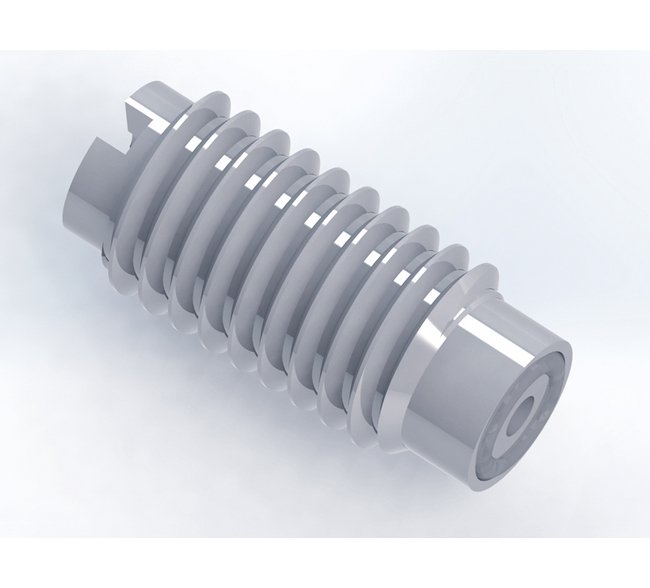

Threaded Insert Ball Check Valve with Metal Seat
Threaded Insert Ball Check Valve with Metal Seat
SKU:CHE-232fe3
High-performance Threaded Insert Ball Check Valve with Metal Seat for precise flow control
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valve with Metal Seat
$39.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valve with Metal Seat
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Ball Check Valve with Metal Seat is crafted with high-quality 303 SS material, ensuring durability and longevity. Its Viton seal and 304 SS ball provide excellent performance under various conditions. With a CV of 0.081, maximum temperature of 300 °F, and maximum operating pressure of 200 psig, this valve offers reliable operation. The Male thread with 5/16-24 UNF Threaded Insert O-ring seal connection A enhances installation convenience. Designed to minimize seat leakage to 20 SSCM (max.) air flow at 25 psi differential, this valve is ideal for applications requiring precision and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
