Threaded Insert Ball Check Valve with Metal Seat
Threaded Insert Ball Check Valve with Metal Seat
SKU:CHE-cfebbf
Durable Threaded Insert Ball Check Valve for industrial applications. Brass construction, 304 SS Ball, CV 0.190, Max Temp 300°F, Max Pressure 200 psig.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valve with Metal Seat
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valve with Metal Seat
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

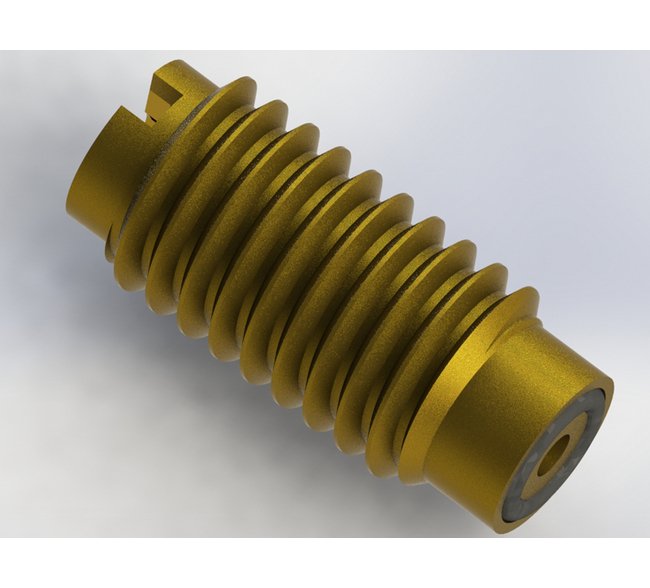

The Threaded Insert Ball Check Valve with Metal Seat is a high-quality valve designed for reliable performance in industrial applications. Constructed with durable Brass material and a 304 SS Ball, this valve ensures longevity and corrosion resistance. With a CV rating of 0.190, a Maximum Temperature of 300 °F, and a Maximum Operating Pressure of 200 psig, it offers optimal functionality. The male Thread and 7/16-20 UNF Threaded Insert O-ring seal connection provide easy installation. Meeting stringent industry standards, this valve is a dependable choice for ensuring efficient fluid control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Thread Size
7/16-20
Dimensions Total Length
0.781 in
Specifications Ball Material
304 SS
Specifications Connection A
7/16-20 UNF Threaded Insert O-ring seal
Specifications Cracking Pressure
0 psid
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Thread
Male
