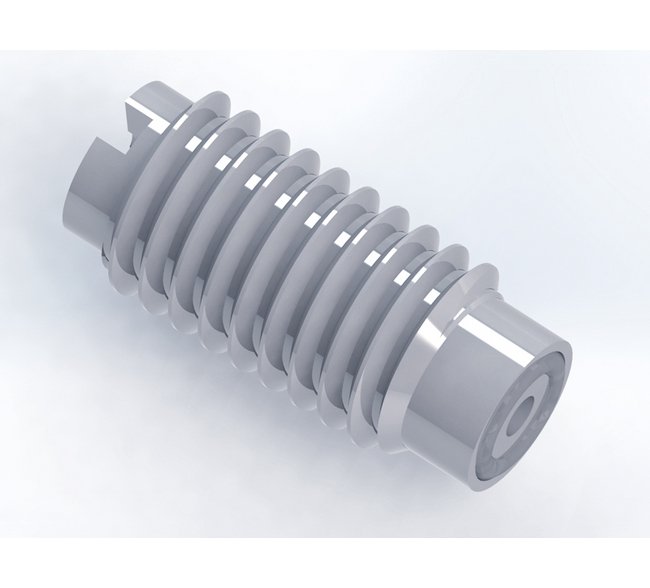

Threaded Insert Ball Check Valves with Metal Seat
Threaded Insert Ball Check Valves with Metal Seat
SKU:CHE-72f46d
Precision-engineered Threaded Insert Ball Check Valves with Metal Seat for high-performance fluid control systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valves with Metal Seat
$49.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valves with Metal Seat
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Ball Check Valves are designed for optimal performance in industrial applications, featuring a durable construction with 303 SS material and a 304 SS ball. With a CV of 0.081, these valves can withstand temperatures up to 300 °F and operating pressures of 200 psig. The male 5/16-24 UNF threaded insert with an O-ring seal ensures secure connections, while the maximum seat leakage of 20 SSCM at 25 psi provides reliable operation. Precision-engineered for efficiency and longevity, these valves deliver exceptional performance in fluid control systems.
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
