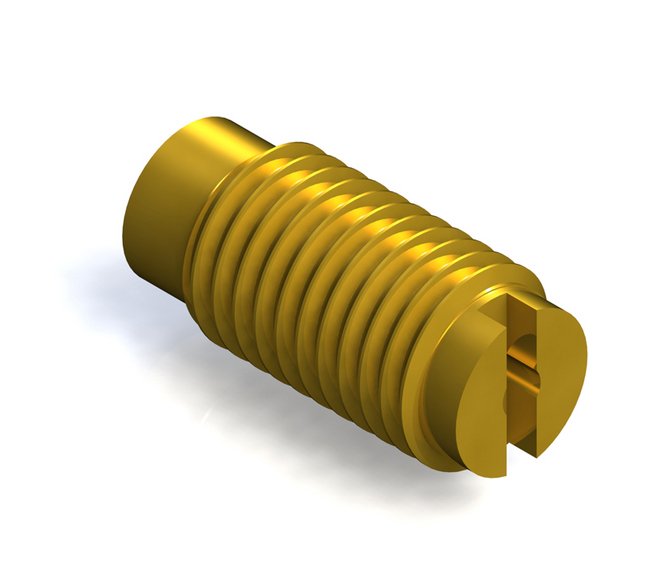

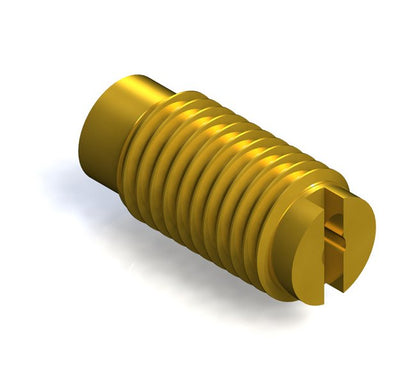

Threaded Insert Ball Check Valves with Metal Seat
Threaded Insert Ball Check Valves with Metal Seat
SKU:CHE-67580d
High-quality Threaded Insert Ball Check Valves with Metal Seat for reliable fluid control. Brass construction, Viton seals, 304 SS ball, and male thread design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Threaded Insert Ball Check Valves with Metal Seat
$24.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Check Valves with Metal Seat
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Threaded Insert Ball Check Valves with Metal Seat are crafted from high-quality brass with Viton seals, ensuring reliable performance in various applications. The 304 SS ball and male thread design deliver a CV of 0.02 with a maximum operating pressure of 125 psig. Designed for temperatures up to 150°F, these check valves feature a precise 10-32 UNF Threaded Insert O-ring seal for secure connections and minimal seat leakage. Trust in the durability and efficiency of our metal-to-metal seat valves for your fluid control needs.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
