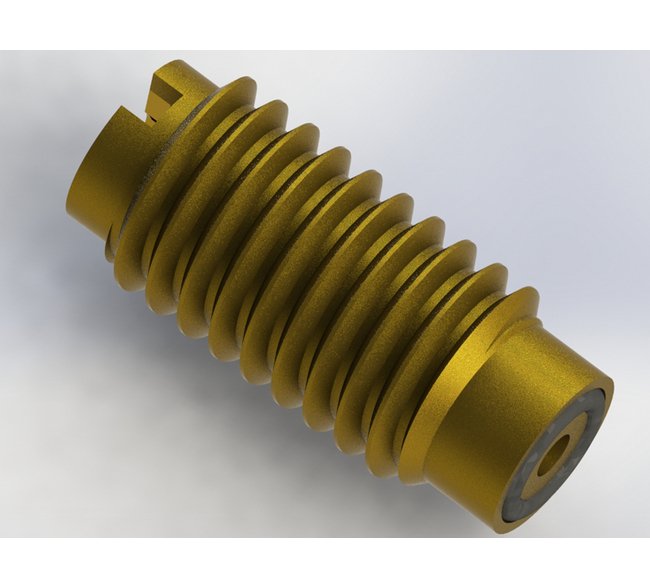

Threaded Insert Ball Type Metal Seat Check Valves
Threaded Insert Ball Type Metal Seat Check Valves
SKU:CHE-6b66a2
Premium Threaded Insert Ball Check Valves for precise flow control and durability in high-pressure environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Insert Ball Type Metal Seat Check Valves
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Ball Type Metal Seat Check Valves
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Ball Type Metal Seat Check Valves are crafted with high-quality Brass material, featuring a 304 SS ball for durability. With a CV of 0.081 and a maximum operating pressure of 200 psig, these valves are designed to withstand temperatures up to 300ºF. The male threaded connection and 5/16-24 UNF Threaded Insert O-ring seal ensure secure fitting. Perfect for applications requiring precise flow control and reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cracking Pressure
0 psid
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Thread
Male
