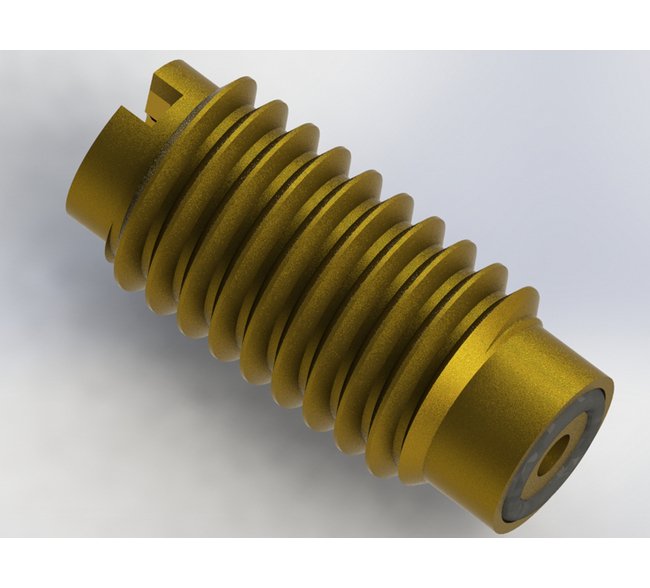

Threaded Insert Check Valves, Ball Type with Metal Seat
Threaded Insert Check Valves, Ball Type with Metal Seat
SKU:CHE-8aa432
Reliable Threaded Insert Check Valves for efficient flow control in high-pressure applications. Brass construction with 304 SS Ball, Cracking Pressure 6 psid.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Threaded Insert Check Valves, Ball Type with Metal Seat
$24.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Check Valves, Ball Type with Metal Seat
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

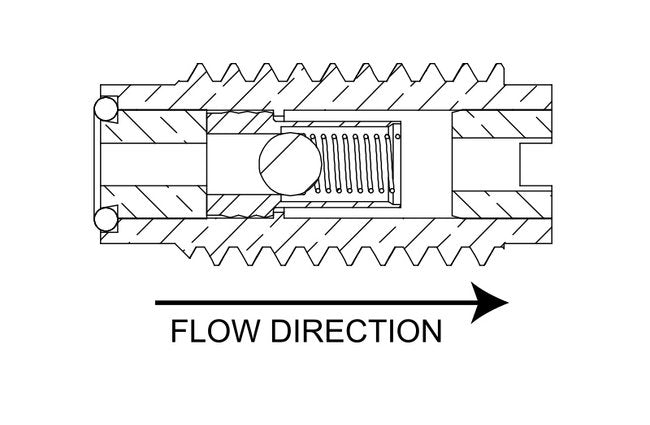

The Threaded Insert Check Valves, Ball Type with Metal Seat are designed with precision and durability in mind. Constructed from high-quality Brass with a 304 SS Ball, these valves ensure reliable performance under demanding conditions. With a CV of 0.081 and a Maximum Operating Pressure of 200 psig, they provide efficient flow control while maintaining a Cracking Pressure of 6 psid. The male Thread size of 5/16-24 UNF along with O-ring seal connection A enhances ease of installation. Ideal for applications up to 300°F, these valves offer superior quality and long-lasting service life.
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cracking Pressure
6 psid
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Thread
Male
