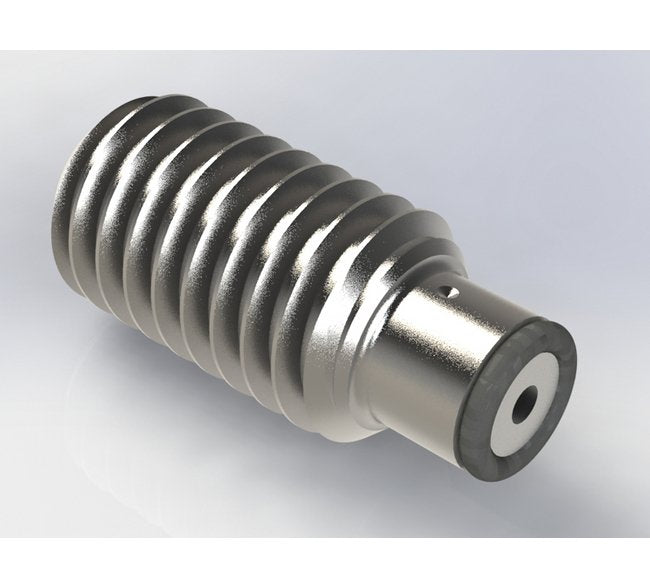

Threaded Insert Check Valves; Nitrile Seal, 440C-SS Ball, 303 SS Material

Name: Threaded Insert Check Valves; Nitrile Seal, 440C-SS Ball, 303 SS Material
Brand: O'Keefe Controls Co.
SKU: CHE-9a733f
Price: 29.99 USD
Availability: OutOfStock

SKU:CHE-9a733f

Reliable Threaded Insert Check Valves with Nitrile Seal and 440C-SS Ball for efficient flow control.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Threaded Insert Check Valves with Nitrile Seal, 440C-SS Ball, and 303 SS Material provide reliable flow control in various applications. With a Nominal Orifice Size of 0.023 inches and a Maximum Operating Pressure of 1400 kPa, these valves ensure efficient performance. Featuring all metal construction for longevity, low cost, and minimal maintenance needs, they are suitable for institutional and consumer use.

Product Specifications

Dimensions Nose Diameter

4.45 mm

Dimensions Orifice Diameter

0.023 in | 0.58 mm

Dimensions Thread Size

Dimensions Total Length

12.7 mm

Dimensions Width Across Flats Hex

3 mm

Features Features

All metal construction option Long life operation Low cost

Specifications Ball Material

440C-SS

Specifications Connection A

M6 Threaded Insert O-Ring seal

Specifications Cv

0.012

Specifications Hex Type

Internal

Specifications Material

303 SS

Specifications Maximum Operating Pressure

1400 kPa

Specifications Nominal Orifice Size

Specifications Screened

None

Specifications Seal Material

Nitrile

Specifications Seat Leakage

20 SSCM (max.) air flow at 25 psi differential

Specifications Thread

Male
