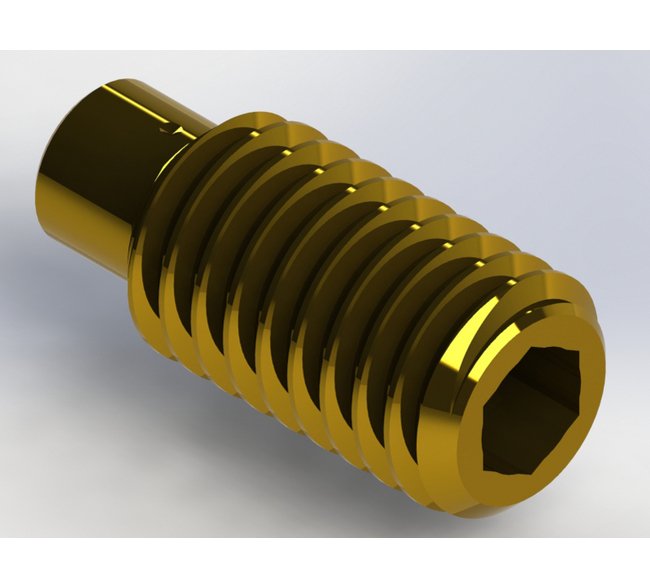

Threaded Insert Check Valves with Nose Seal
Threaded Insert Check Valves with Nose Seal
SKU:CHE-3cec16
Reliable Threaded Insert Check Valves with Fluorocarbon seal, ideal for precise fluid control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Insert Check Valves with Nose Seal
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Check Valves with Nose Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

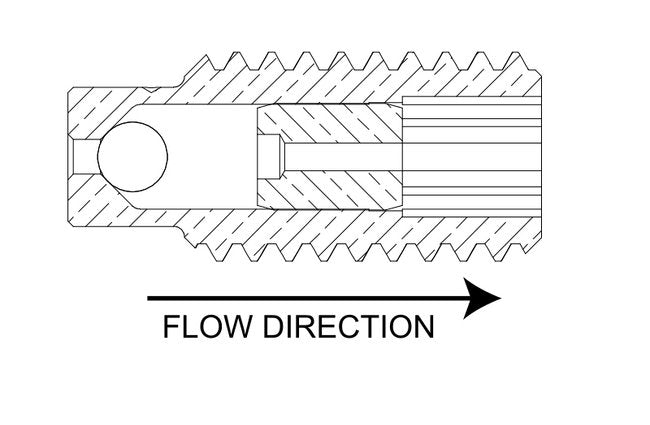

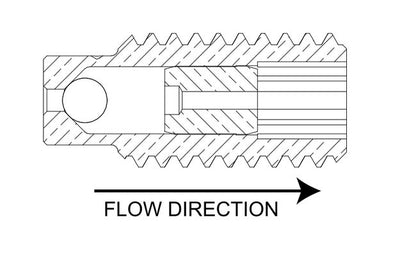

Enhance fluid control with our Threaded Insert Check Valves featuring a Fluorocarbon seal and ball. Made of durable 303 SS, these valves ensure minimal seat leakage with 6 SCCM max airflow. With a maximum operating pressure of 875 kPa and an orifice diameter of 0.032 inches, these valves are reliable, cost-effective, and designed for long-life operation.
Product Specifications

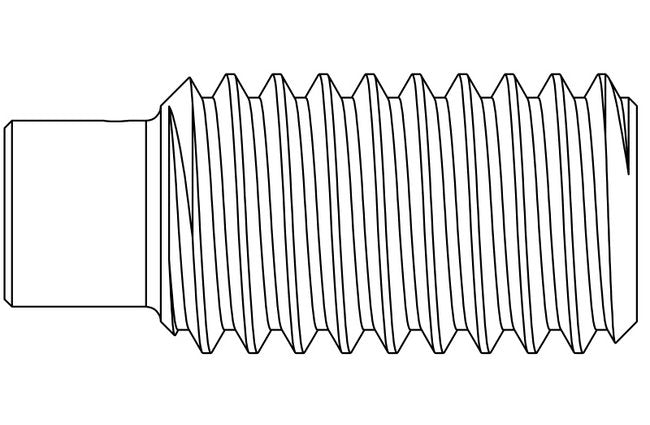

Dimensions Nose Diameter
5.59 mm
Dimensions Orifice Diameter
0.032 in | 0.81 mm
Dimensions Thread Size
M8
Dimensions Total Length
16.3 mm
Dimensions Width Across Flats Hex
4 mm
Features Features
All metal construction option Long life operation Low cost
Specifications Ball Material
Fluorocarbon
Specifications Connection A
M8 Threaded Insert O-Ring seal
Specifications Cv
0.024
Specifications Hex Type
Internal
Specifications Material
303 SS
Specifications Maximum Operating Pressure
875 kPa
Specifications Maximum Temperature
120 ºF
Specifications Nominal Orifice Size
32
Specifications Screened
None
Specifications Seal Material
Fluorocarbon
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
Specifications Thread
Male
