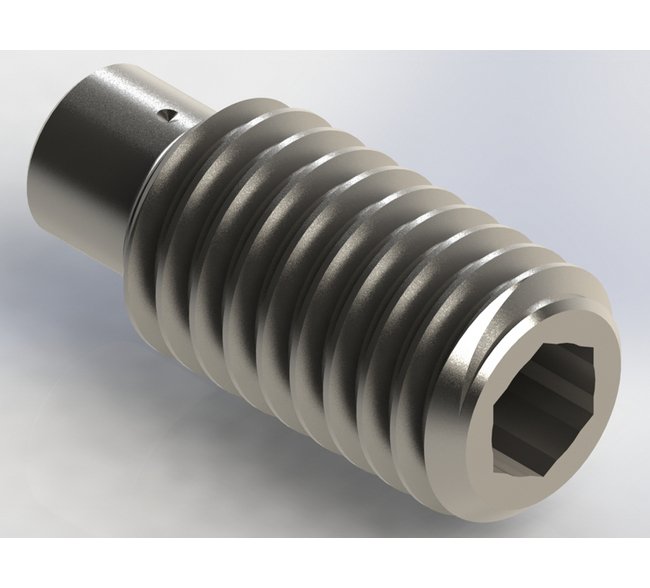

Threaded Insert Check Valves with Nose Seal
Threaded Insert Check Valves with Nose Seal
SKU:CHE-e15f4d
High-quality Threaded Insert Check Valves for precise flow control and durability. Meets institutional standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Insert Check Valves with Nose Seal
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Check Valves with Nose Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior flow control with our Threaded Insert Check Valves featuring a metal to metal seat design. Constructed with high-grade 302 SS and 303 SS materials, these valves ensure long-lasting performance even in demanding environments. With a nominal orifice size of 0.031 inches, maximum operating pressure of 1000 psig, and a maximum temperature of 300°F, our valves deliver reliability and efficiency. Ideal for institutional use, they offer low seat leakage, meeting stringent quality standards.
Product Specifications
Dimensions Nose Diameter
0.125 in
Dimensions Orifice Diameter
0.031 in
Dimensions Thread Length
0.320 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Dimensions Width Across Flats Hex
3/32 in
Features Features
All metal construction option Long life operation Low cost
Specifications Ball Material
302 SS
Specifications Connection A
10-32 UNF Threaded Insert
Specifications Cv
0.02
Specifications Hex Type
Internal
Specifications Material
303 SS
Specifications Maximum Operating Pressure
1000 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
31
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
