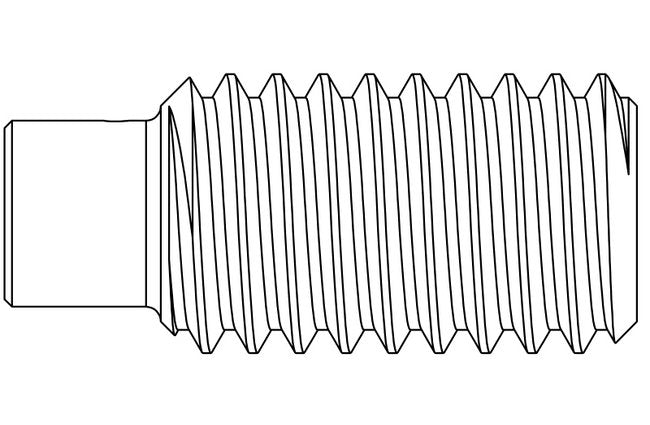

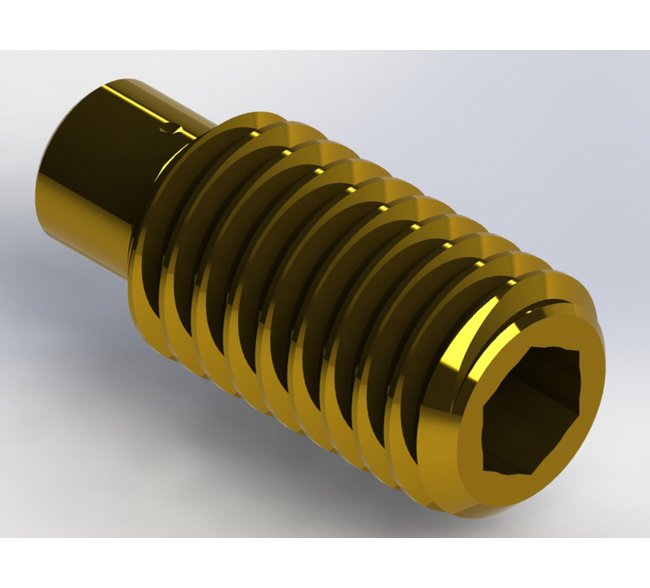

Threaded Insert Check Valves with Nose Seal
Threaded Insert Check Valves with Nose Seal
SKU:CHE-b5fadc
High-performance Threaded Insert Check Valves with Nose Seal for precision flow control and durability in critical systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Insert Check Valves with Nose Seal
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Check Valves with Nose Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

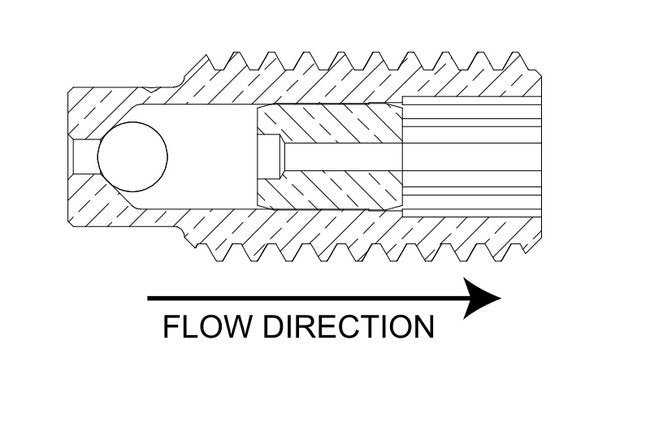

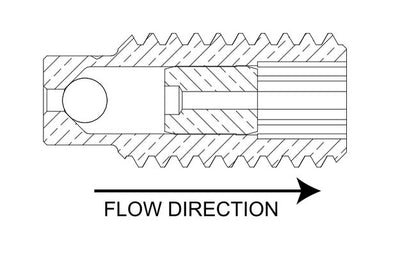

The Threaded Insert Check Valves with Nose Seal are expertly crafted with Fluorocarbon seal material and Nitrile ball material, ensuring reliable performance in demanding applications. Constructed from 303 SS, these valves boast a Nominal Orifice Size of 81 and a CV of 0.150, suitable for applications requiring precision flow control. With a maximum operating pressure of 875 kPa and a maximum temperature of 65°F, these valves offer durability and consistent performance. The metal to metal seat design ensures minimal seat leakage of 6 SCCM (max.) air flow at greater than 50 psi differential, making them ideal for critical systems.
Product Specifications
Dimensions Nose Diameter
5.59 mm
Dimensions Orifice Diameter
0.0810 in | 2.06 mm
Dimensions Thread Size
M8
Dimensions Total Length
16.3 mm
Dimensions Width Across Flats Hex
4 mm
Features Features
All metal construction option Long life operation Low cost
Specifications Ball Material
Nitrile
Specifications Connection A
M8 Threaded Insert O-Ring seal
Specifications Cv
0.150
Specifications Hex Type
Internal
Specifications Material
303 SS
Specifications Maximum Operating Pressure
875 kPa
Specifications Maximum Temperature
65 ºF
Specifications Nominal Orifice Size
81
Specifications Screened
None
Specifications Seal Material
Fluorocarbon
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
Specifications Thread
Male
