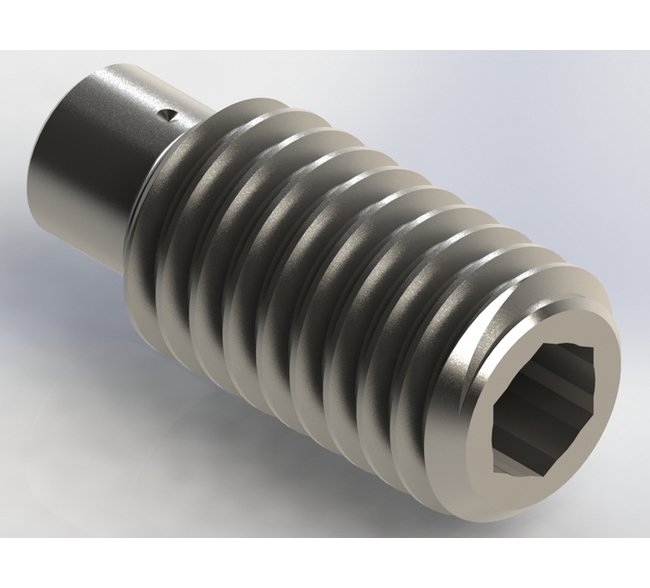

Threaded Insert Check Valves with Nose Seal
Threaded Insert Check Valves with Nose Seal
SKU:CHE-f30a97
High-performance Threaded Insert Check Valves with Nose Seal for industrial applications. Durable, efficient, and cost-effective.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Threaded Insert Check Valves with Nose Seal
$39.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Check Valves with Nose Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Check Valves with Nose Seal are engineered for optimal performance in industrial applications, featuring a Seal Material of Loctite 542 and a Ball Material of 440C-SS. With a Maximum Operating Pressure of 7000 kPa and a CV of 0.0088, these valves ensure efficient and reliable flow control. The all-metal construction option guarantees long-lasting durability and cost-effectiveness, making them a trusted choice for critical environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Nose Diameter
2.29 mm
Dimensions Orifice Diameter
0.02 in | 0.51 mm
Dimensions Thread Size
M3.5
Dimensions Total Length
7.87 mm
Dimensions Width Across Flats Hex
2 mm
Features Features
All metal construction option Long life operation Low cost
Specifications Ball Material
440C-SS
Specifications Connection A
M3.5 Threaded Insert
Specifications Cv
0.0088
Specifications Hex Type
Internal
Specifications Material
303 SS
Specifications Maximum Operating Pressure
7000 kPa
Specifications Nominal Orifice Size
20
Specifications Screened
None
Specifications Seal Material
Loctite 542
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
