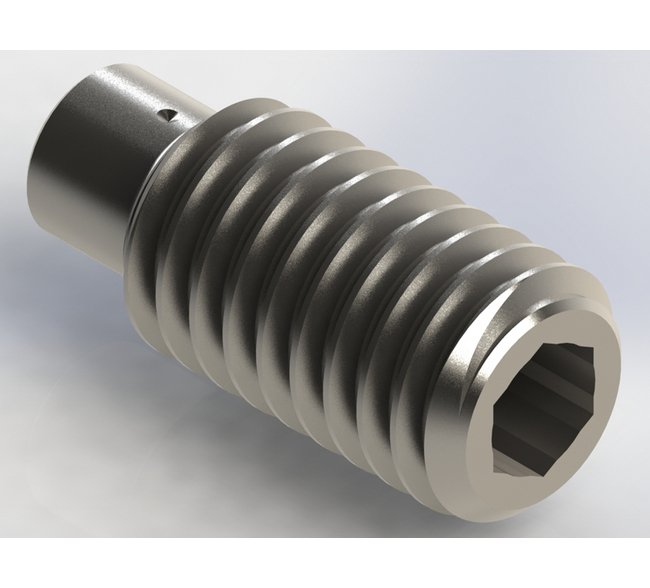

Threaded Insert Check Valves with Nose Seal
Threaded Insert Check Valves with Nose Seal
SKU:CHE-da02d0
High-performance Threaded Insert Check Valves with Nose Seal for industrial applications. Features durable construction and tight seal.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Threaded Insert Check Valves with Nose Seal
$49.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Check Valves with Nose Seal
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Check Valves with Nose Seal are precision-engineered for reliable performance in industrial applications. Featuring a Loctite 542 Seal Material and 440C-SS Ball Material, these valves ensure a tight seal and long lifespan. With a CV of 0.200 and a durable 303 SS construction, they can withstand a Maximum Operating Pressure of 7000 kPa. Ideal for handling moderate air flow with Seat Leakage limited to 20 SSCM at 25 psi, these valves offer cost-effective, all-metal construction for efficiency and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Nose Diameter
5.59 mm
Dimensions Orifice Diameter
0.0940 in | 2.39 mm
Dimensions Thread Size
M8
Dimensions Total Length
16.3 mm
Dimensions Width Across Flats Hex
4 mm
Features Features
All metal construction option Long life operation Low cost
Specifications Ball Material
440C-SS
Specifications Connection A
M8 Threaded Insert
Specifications Cv
0.200
Specifications Hex Type
Internal
Specifications Material
303 SS
Specifications Maximum Operating Pressure
7000 kPa
Specifications Nominal Orifice Size
94
Specifications Screened
None
Specifications Seal Material
Loctite 542
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
