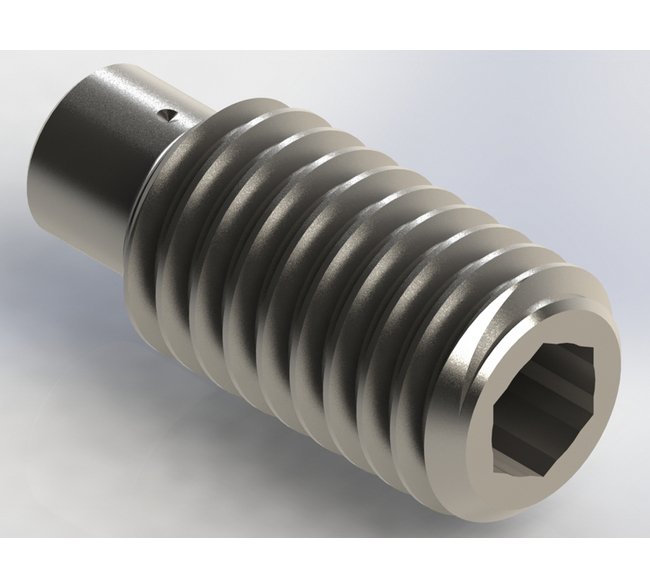

Threaded Insert Check Valves with Nose Seal
Threaded Insert Check Valves with Nose Seal
SKU:CHE-d5c22b
Premium Threaded Insert Check Valves with Nose Seal, reliable performance, minimal leakage, durable construction
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Threaded Insert Check Valves with Nose Seal
$49.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Check Valves with Nose Seal
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Check Valves with Nose Seal are designed with precision using premium materials such as 303 SS and Loctite 542 seal for optimal performance and longevity. With a maximum operating pressure of 875 kPa, these valves ensure reliable sealing, resulting in minimal seat leakage of 6 SCCM at greater than 50 psi. The Metal to Elastomeric seat option provides versatile compatibility while the all-metal construction guarantees durability and cost-effectiveness. Ideal for various applications, these valves deliver consistent results in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Nose Diameter
5.59 mm
Dimensions Orifice Diameter
0.0940 in | 2.39 mm
Dimensions Thread Size
M8
Dimensions Total Length
16.3 mm
Dimensions Width Across Flats Hex
4 mm
Features Features
All metal construction option Long life operation Low cost
Specifications Ball Material
Fluorocarbon
Specifications Connection A
M8 Threaded Insert
Specifications Cv
0.200
Specifications Hex Type
Internal
Specifications Material
303 SS
Specifications Maximum Operating Pressure
875 kPa
Specifications Maximum Temperature
120 ºF
Specifications Nominal Orifice Size
94
Specifications Screened
None
Specifications Seal Material
Loctite 542
Specifications Seat Leakage
6 SCCM (max.) air flow at greater than 50 psi differential
Specifications Thread
Male
