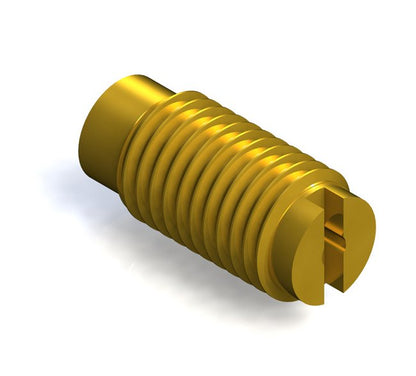

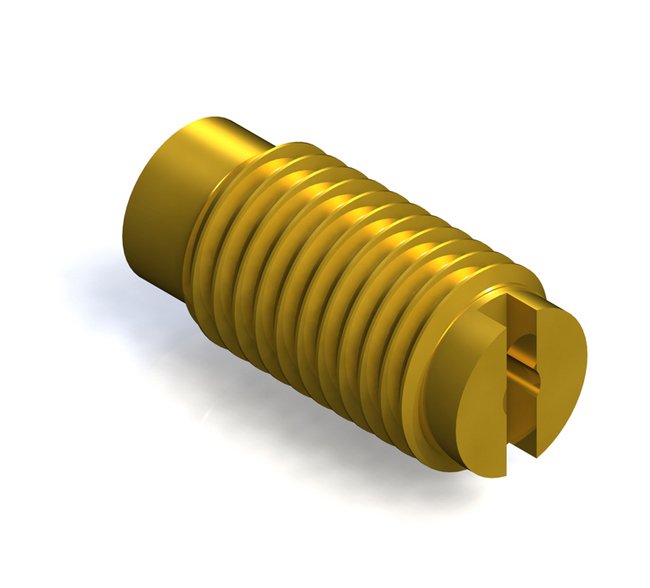

Threaded Insert Metal Seat Ball Type Check Valves
Threaded Insert Metal Seat Ball Type Check Valves
SKU:CHE-ba29ef
Reliable Threaded Insert Metal Seat Ball Type Check Valves for industrial applications. Brass construction, 304 SS ball, 300 °F, 200 psig, male thread, seat leakage 20 SSCM.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Threaded Insert Metal Seat Ball Type Check Valves
$49.99
Quantity: 1
Claim Your Seller Account
Threaded Insert Metal Seat Ball Type Check Valves
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Insert Metal Seat Ball Type Check Valves are designed with precision to ensure reliable performance in industrial settings. Constructed with durable Brass material and a 304 SS ball, these valves offer a CV of 0.081 and can withstand up to 300 °F temperature and 200 psig pressure. Featuring a Male thread and 5/16-24 UNF Threaded Insert O-ring seal connection, these valves minimize seat leakage to 20 SSCM. With a compact total length of 0.669 inches, they are ideal for various applications requiring secure flow control. Compliant with federal procurement standards and industry certifications, these valves guarantee top-notch quality and performance.
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
