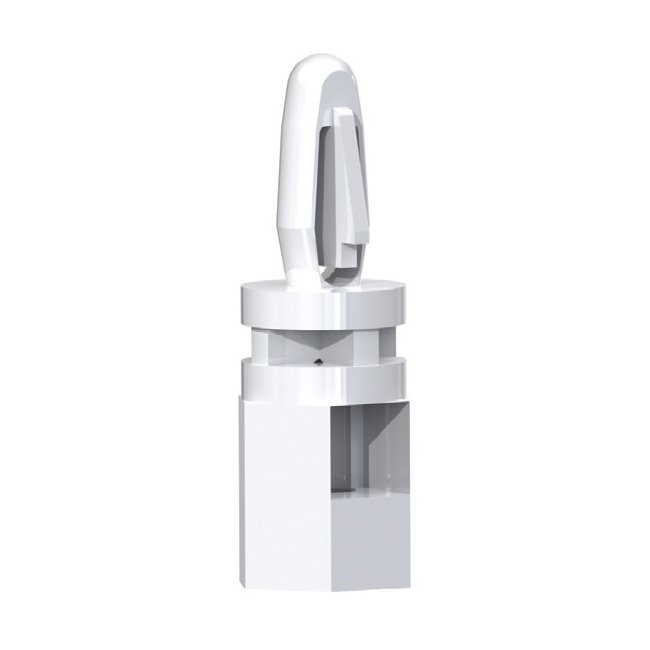

Threaded Screw Chassis Mount for Circuit Board Support
Threaded Screw Chassis Mount for Circuit Board Support
SKU:01C-357045
Secure your circuit board with the 76 Series Threaded Screw Chassis Mount. RoHS compliant, with Nylon 66 UL94V-2 material. Temperature range: -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Threaded Screw Chassis Mount for Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
Threaded Screw Chassis Mount for Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

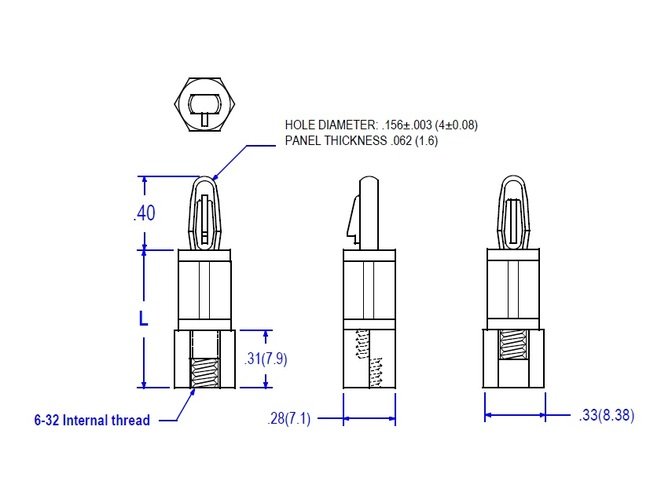

The 76 Series Threaded Screw Chassis Mount is designed for locking circuit board support with a Female#6;-32 thread. This chassis mount features a .156 PCB mounting hole, ensuring secure attachment. Made of Nylon 66 UL94V-2 material (UL94V-0 option available), this product meets ASTM D4066, PA111 standards and is RoHS compliant. It has a temperature range of -40 to 185F (-40 to 85C), providing durability and reliability for various applications.
Product Specifications
Specifications Dim L
.375 (9.5) inches (mm)
