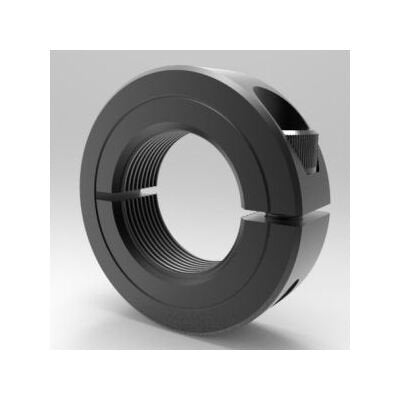

Threaded Shaft Collars - UNF/UNC One-Piece Split Clamp-Type
Threaded Shaft Collars - UNF/UNC One-Piece Split Clamp-Type
SKU:ROU-f2f3c4
Precision-machined Threaded Shaft Collars for secure assembly on UNF/UNC threaded shafts. High clamping power and easy to adjust. Steel and Stainless Steel options.
Regular price
$10.92
Regular price
Sale price
$10.92
Unit price
per
Initiate Order
Threaded Shaft Collars - UNF/UNC One-Piece Split Clamp-Type
$10.92
Quantity: 1
Claim Your Seller Account
Threaded Shaft Collars - UNF/UNC One-Piece Split Clamp-Type
$10.92
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your shaft assemblies with our precision-machined UNF/UNC Threaded Shaft Collars. These one-piece split clamp-type collars provide superior holding power over set-screw types. Available in High Strength and Low Profile styles, they are non-marring and easy to adjust. Designed for standard UNF (fine thread) or UNC (coarse thread) shafts, these collars offer high clamping power for secure and reliable performance. Stocked in Steel and Stainless Steel options to suit various application needs.
Product Specifications
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28
Dimensional Attributes Threaded Bore Size
1-14
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.21 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
10.92 USD
Specifications Material
Steel
Specifications Part Number
7L100F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786011825
