Threaded Split Clamp Shaft Collar - UNF/UNC Two-Piece Design

Name: Threaded Split Clamp Shaft Collar - UNF/UNC Two-Piece Design
Brand: Stafford Manufacturing Corp.
SKU: THR-7708a4
Price: 24.99 USD
Availability: OutOfStock

SKU:THR-7708a4

Precision machined UNF/UNC Two-Piece Split Clamp Shaft Collar for secure positioning on standard threaded shafts.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

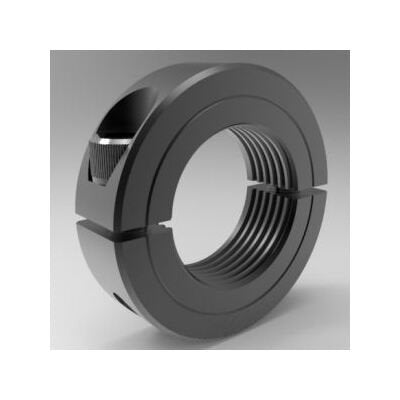

The Threaded Split Clamp Shaft Collar in UNF/UNC Two-Piece Design is a versatile solution for standard threaded shafts. Precision machined from high-strength steel with a black oxide finish, this collar offers superior holding power without marring the shaft. With options for High Strength or Low Profile styles, it allows easy adjustment and precise positioning on the shaft. Featuring a threaded bore size of 1 1/2-6 and an outside diameter of 2.375 inches, this collar is designed to meet the demanding requirements of various applications.

Product Specifications

Dimensional Attributes Outside Diameter

2.375 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

1 1/2-6

Dimensional Attributes Width

0.562 in

Specifications Alloy

1215

Specifications Approximate Weight

0.42 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

8L108C

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786012846

Threaded Split Clamp Shaft Collar - UNF/UNC Two-Piece Design
