Threaded Steel Flange - 24"
Threaded Steel Flange - 24"
SKU:FIT-69ef84

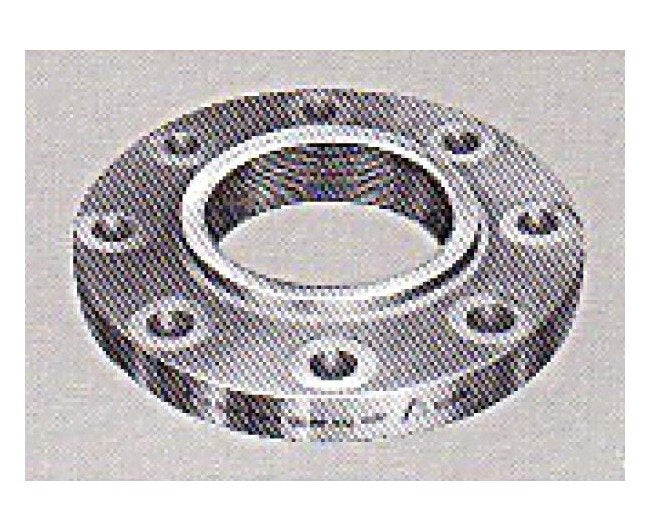

High-quality 24" Threaded Steel Flange, Class 150, ANSI B16.5 compliant for secure pipe connections.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Threaded Steel Flange - 24"
$499.99
Quantity: 1
Claim Your Seller Account
Threaded Steel Flange - 24"
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Threaded Steel Flange in 24 inches size is a high-quality forged steel Class 150 flange designed for industrial applications. With precise measurements and features like a raised face and specific hub variations, this flange ensures secure pipe connections and sealing. Meeting ANSI B16.5 standards, it offers durability and reliability in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

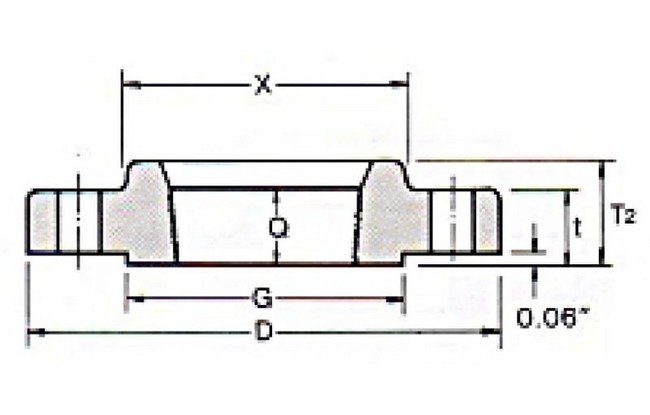

Class 150 flanges except Lap Joint will be furnished with 0.06" raised face, which is included in 'Thickness' (t) and 'Length through Hub' (T1), (T2).For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degreesBlind Flanges may be made with the same hub as that used for Slip-On Flanges or without hub. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (t).Depth of Socket (Y) is covered by ANSI B16.5 only in sizes through 3 inch, over 3" is at the manufacturer's option.
Specifications Approx Weight
199.50 lbs
Specifications Bolt Circle Diameter
29.50 inches
Specifications Diameter At Base Of Hub X
26.12 inches
Specifications Diameter Of Bolts
1 1/4 inches
Specifications Diameter Of Holes
1.38 inches
Specifications Length Thru Hub T2
3.25 inches
Specifications Machine Bolt Length Raised Face
6.00 inches
Specifications Nominal Pipe Size
24 inches
Specifications Number Of Holes
20
Specifications Od Of Raised Face G
27.25 inches
Specifications Outside Diameter D
32.00 inches
Specifications Stud Bolt Length Raised Face
6.75 inches
Specifications Stud Bolt Length Ring Joint
7.25 inches
Specifications Thickness T
1.88 inches
Specifications Thread Length Q
3.25 inches
