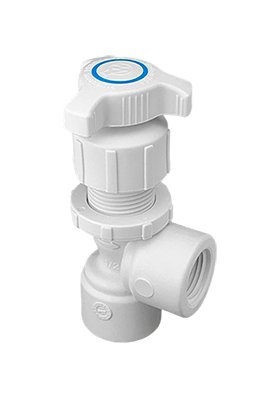

Throttle Master 1/2" x 1/2" Female NPT Angle Needle Valve-PP
Throttle Master 1/2" x 1/2" Female NPT Angle Needle Valve-PP
SKU:PLA-9856ad
Achieve precise flow control with the Throttle Master 1/2" x 1/2" Female NPT Angle Needle Valve-PP for corrosive and high purity fluids. Features bubble-tight shut-off and 20% finer metering control.
Regular price
$76.50
Regular price
Sale price
$76.50
Unit price
per
Initiate Order
Throttle Master 1/2" x 1/2" Female NPT Angle Needle Valve-PP
$76.50
Quantity: 1
Claim Your Seller Account
Throttle Master 1/2" x 1/2" Female NPT Angle Needle Valve-PP
$76.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Throttle Master 1/2" x 1/2" Female NPT Angle Needle Valve-PP offers precise flow control and fine adjustment for corrosive and high purity fluids. With its angle pattern (90°) needle finish and SPI/SPE #1 rating, it provides bubble-tight, low torque shut-off ensuring long-term performance. The valve features a 24 pitch metering thread for 20% finer metering control and is PTFE sealed for chemical resistance and high purity applications. Its integrally designed panel mounting requires no fasteners and can mount to panel thicknesses from 1/16" to 1/2". This valve is constructed with Polypro (PP) and PTFE seal, making it resistant to corrosion and contamination.
Product Specifications
Features 0
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Specifications Cv Factor
0.780
Specifications Inlet X Outlet
1/2" Female NPT
Specifications List Price
76.5 USD
Specifications Materials
Polypro (PP), PTFE Seal
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle, 90° Pattern
