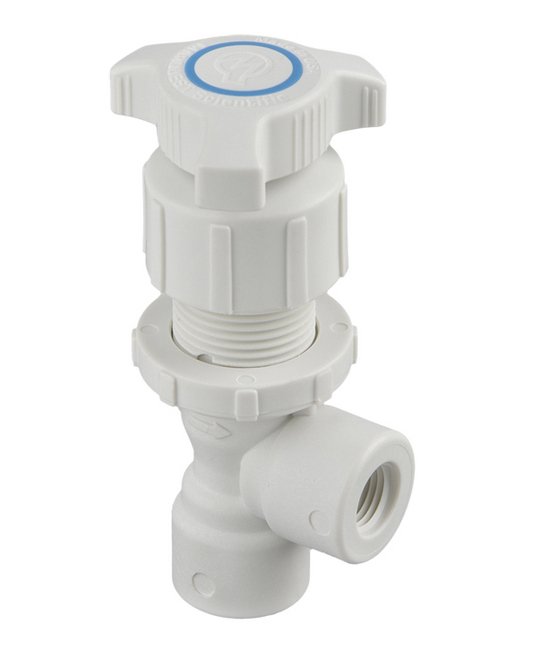

Throttle Master 1/4" Angle Needle Valve-PP with L Series Needle
Throttle Master 1/4" Angle Needle Valve-PP with L Series Needle
SKU:PLA-511f49
Enhance cycle life and sealing with Throttle Master 1/4" Angle Needle Valve, perfect for precise metering control.
Regular price
$90.95
Regular price
Sale price
$90.95
Unit price
per
Initiate Order
Throttle Master 1/4" Angle Needle Valve-PP with L Series Needle
$90.95
Quantity: 1
Claim Your Seller Account
Throttle Master 1/4" Angle Needle Valve-PP with L Series Needle
$90.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior on/off cycle life with the Throttle Master 1/4" Angle Needle Valve featuring PTFE sealing for an unlimited life warranty. This valve offers low torque operation, exceptional chemical resistance, and integrally designed panel mounting for easy installation. With no elastomers or metals, it ensures high purity and corrosion-free performance. Choose this valve for precise metering control and reliable sealing in institutional settings.
Product Specifications
Features 0

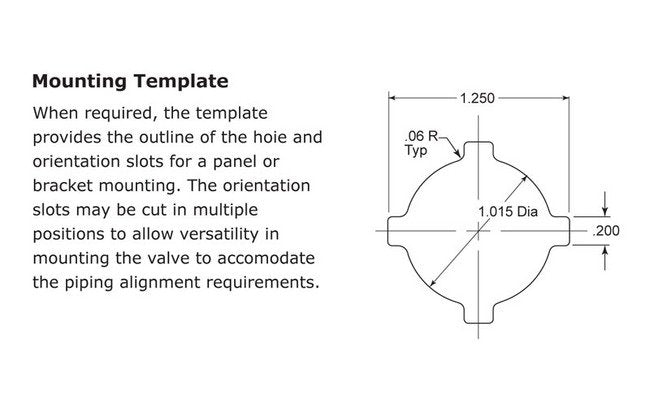

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Materials Of Construction Materials Of Construction
Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE, Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT
Specifications Cv Factor
0.426
Specifications Inlet X Outlet
1/4" Female NPT
Specifications List Price
90.95 USD
Specifications Materials
Polypro
Specifications Seal
PTFE
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle Pattern, L Series Needle
