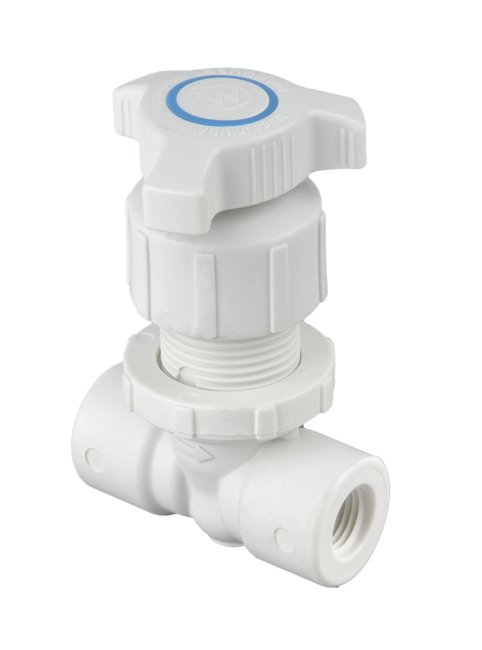

Throttle Master 1/4" x 1/4" Female NPT Globe Needle Valve-PP
Throttle Master 1/4" x 1/4" Female NPT Globe Needle Valve-PP
SKU:PLA-0cd3cf
Achieve precise flow control with the Throttle Master 1/4" x 1/4" Female NPT Globe Needle Valve-PP, ideal for corrosive and high purity fluids.
Regular price
$71.50
Regular price
Sale price
$71.50
Unit price
per
Initiate Order
Throttle Master 1/4" x 1/4" Female NPT Globe Needle Valve-PP
$71.50
Quantity: 1
Claim Your Seller Account
Throttle Master 1/4" x 1/4" Female NPT Globe Needle Valve-PP
$71.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Throttle Master 1/4" x 1/4" Female NPT Globe Needle Valve-PP provides precise flow control for corrosive and high purity fluids. Featuring a Globe Pattern with SPI/SPE #1 Needle Finish, this valve offers bubble-tight, low torque shut-off and long-term performance. With a 24 pitch metering thread for 20% finer control, PTFE sealing, chemical resistance, and high purity integrally designed panel mounting, this valve ensures no contamination or corrosion. Designed for panel mounting without the need for fasteners, it is constructed from Polypro (PP) and has a Cv Factor of 0.310.
Product Specifications
Features 0
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Materials Of Construction 0
Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT
Specifications Cv Factor
0.310
Specifications Inlet X Outlet
1/4" Female NPT
Specifications List Price
71.5 USD
Specifications Materials
Polypro (PP), PTFE Seal
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Globe, Straight Pattern
